TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-23

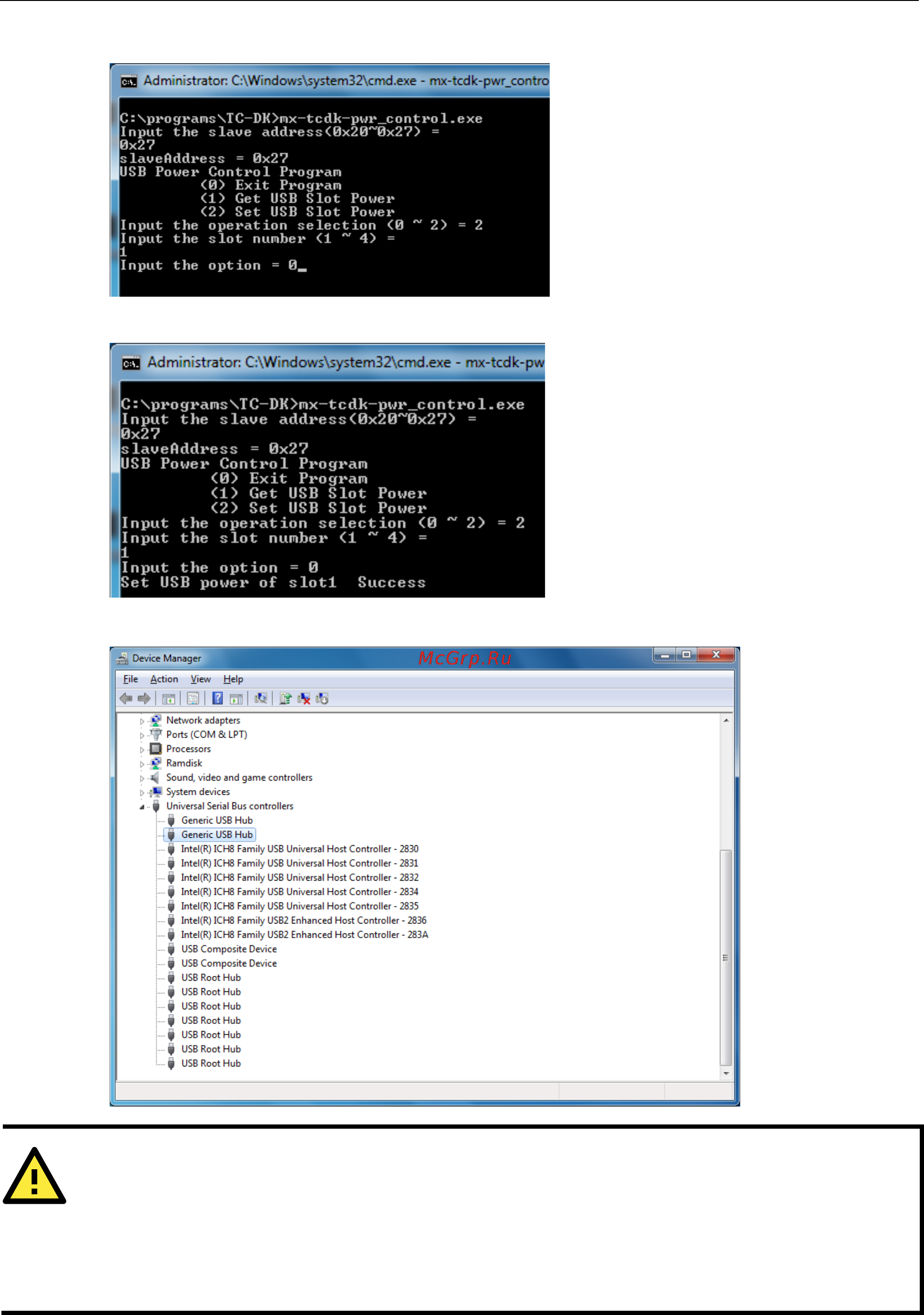

5. Enter the option to disable/enable the USB power. (For example, entering 0 disables USB power)
6. Check if the USB power has been set successfully.
7. Check the Windows Device Manager to see if the device is disabled.
ATTENTION
Us
ing the TC-DK10-T/TC-DK20-T’s onboard power controls (mx-tcdk-pwr-control.exe) for control of PCIe or
USB
-DOM devices is discouraged. Using the onboard power controls for control of PCIe and USB-
DOM devices
may damage the devices (PCIe) or corrupt data (USB
-DOM). Any use of the TC-DK10-T/TC-DK20-T’s
automated, onboard power controls with PCIe and USB
-DOM devices is undertaken at the user’s
own risk.
