TC-6000 Series Expansion Modules Hardware Connection Description

3-5

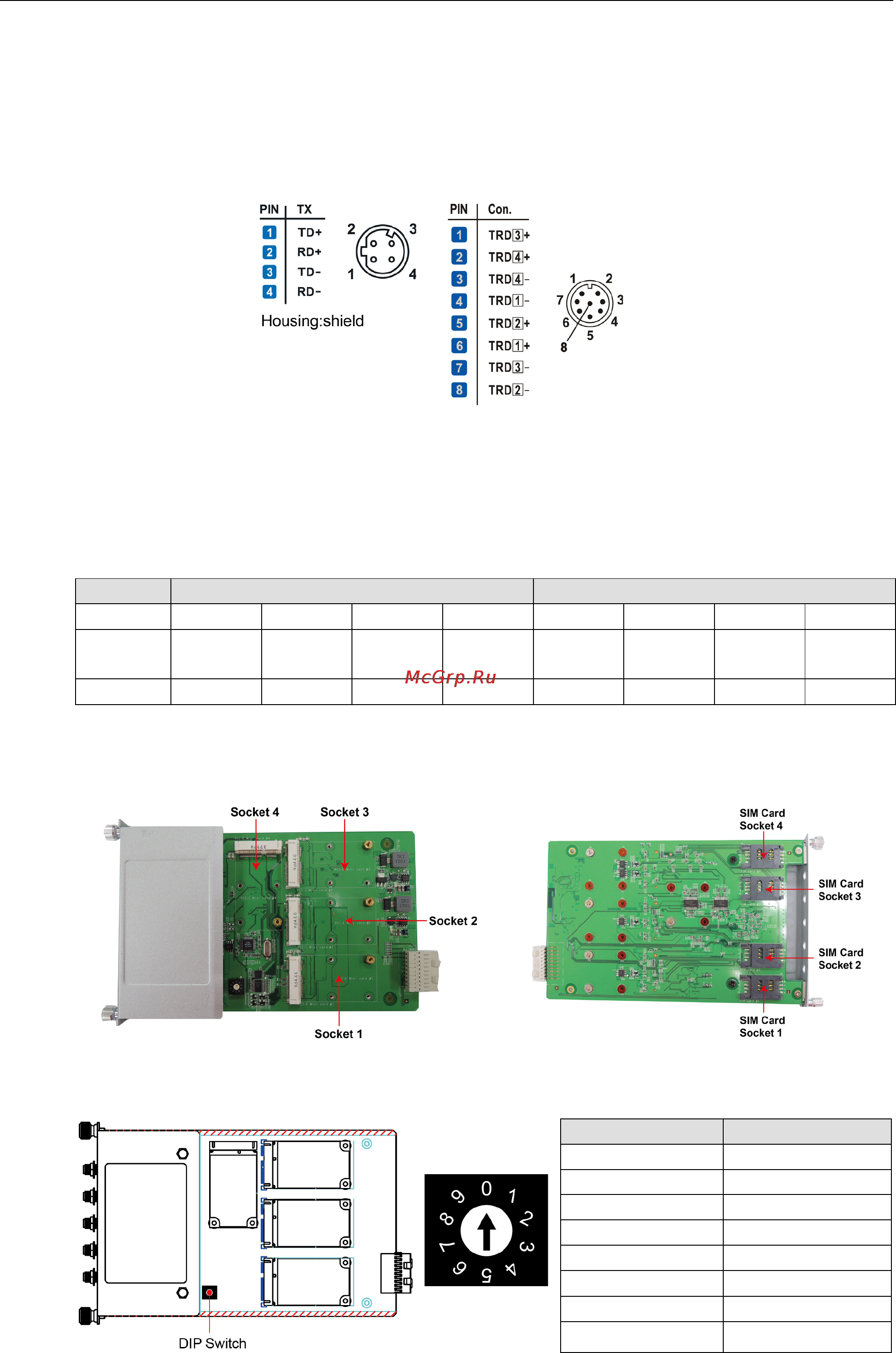

TC-SW04-M12-4P-T/TC-SW04-M12-8P-T Switch Module

The TC-SW04-M12-4P-T switch module comes with 4 auto-sensing 10/100 Mbps switched ports, and the

TC-SW04-M12-8P-T switch module comes with 8. Connect one end of the Ethernet cable to the module and the

other end to the network or device you wish to add to the network. Pin assignments are shown below.

TC-SW04-M12-4P-T TC-SW04-M12-8P-T

Installing Cellular Modules on the TC-DK10-T

and TC-DK20-T

The TC-DK10-T and TC-DK20-T have four mini PCIe sockets that allow you to install four cellular modules.

However, they come with different interfaces. Check the following table for details.

Model TC-DK10-T TC-DK20-T

Interface Socket 1 Socket 2 Socket 3 Socket 4 Socket 1 Socket 2 Socket 3 Socket 4

PCIe V1.0

(One Lane)

 -- -- --    

USB 2.0        

Before installing a cellular module, verify the locations of the mini PCIe sockets on the front side and match

them to the SIM sockets on the rear. If you install a cellular module in socket 1, you will need to install a SIM

card in SIM socket 1.

Front View Rear View

Note that you must specify a different SMBus address for each TC-DK01-T/TC-DK20-T module. This is done by

adjusting the DIP switch. The diagram below shows the location of the DIP switch, and provides a table that

maps the DIP switch value to the SMBus address it is associated with.

Value SMBus Address

0 0x27

1 0x26

2 0x25

3 0x24

4 0x23

5 0x22

6 0x21

7 0x20
