TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-15

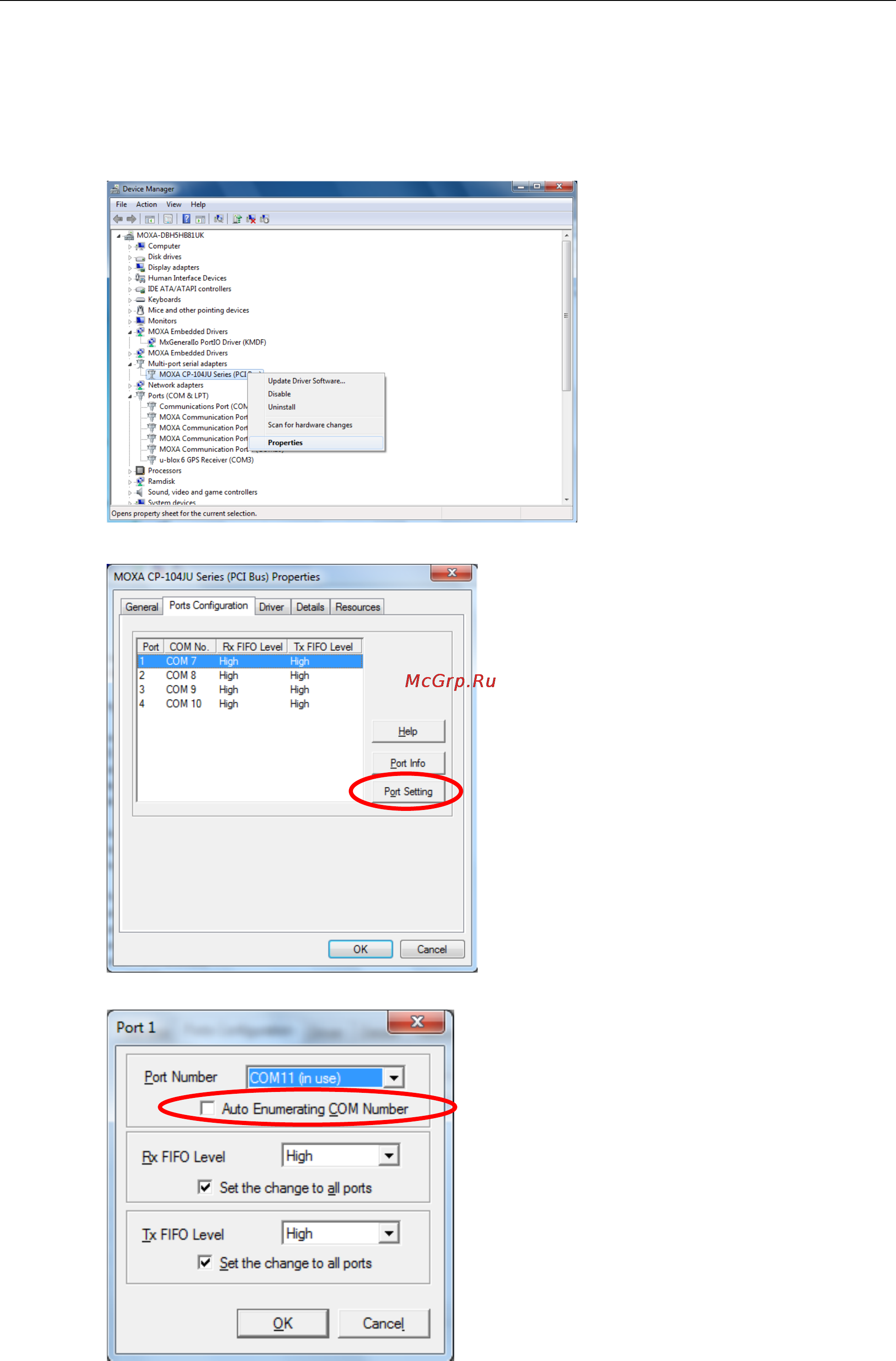

In some situations, you may want to change the port name to match the name used by your program. Take the
following steps to change port names:
1. Go to Control Panel System and Security Device Manager Multi-port serial adapters and
select the adapter.
2. Right-click the adapter and select Properties.
3. Click the Port Configuration tab, select the port, and then click Port Setting.
4. To change the port name separately, uncheck Auto Enumerating COM Number.
