TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-14

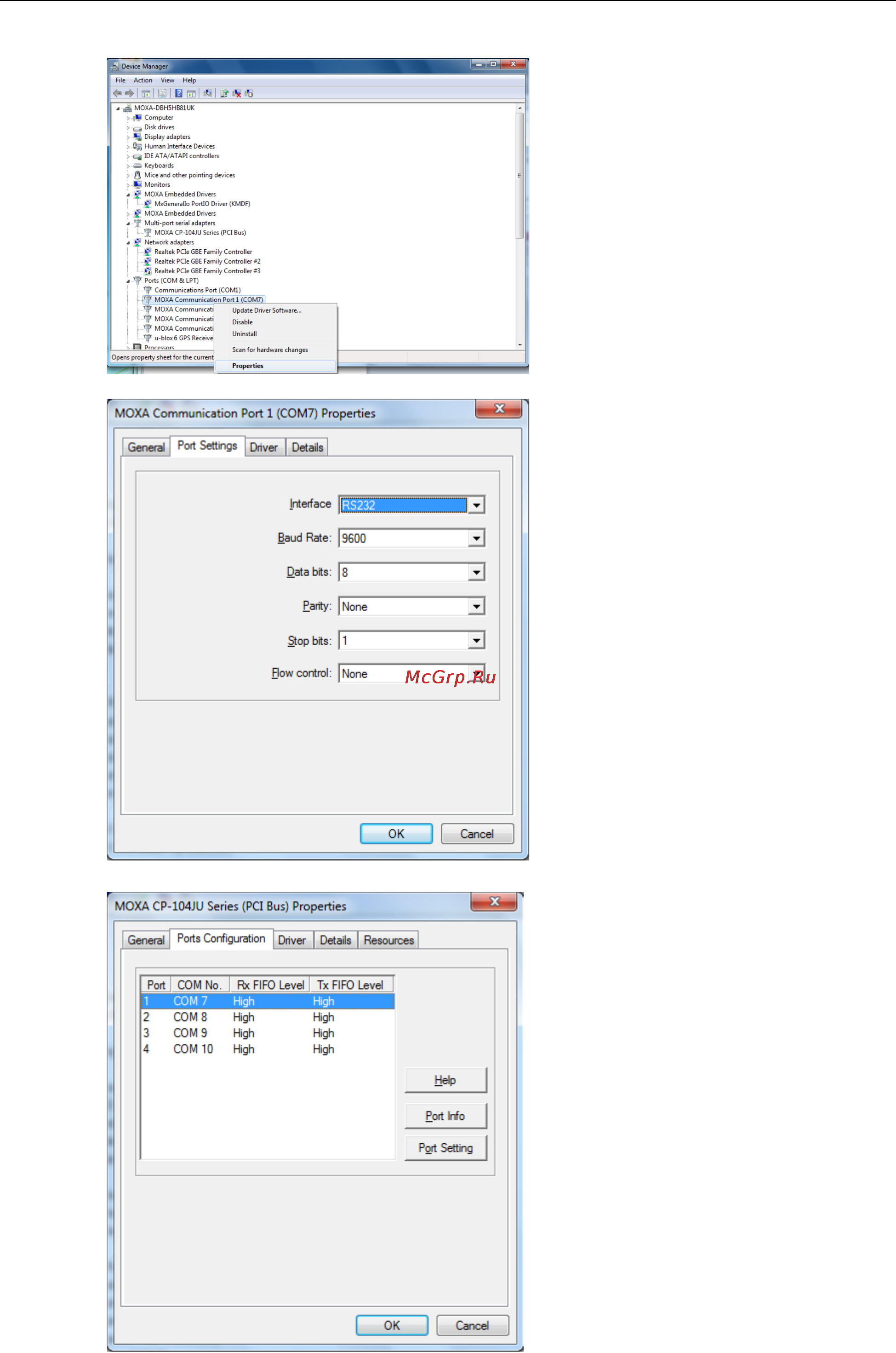

2. Right-click the COM port and then click Properties.
3. Click the Port Settings tab and then select the interface you would like to use.
4. Click OK to apply the settings.
