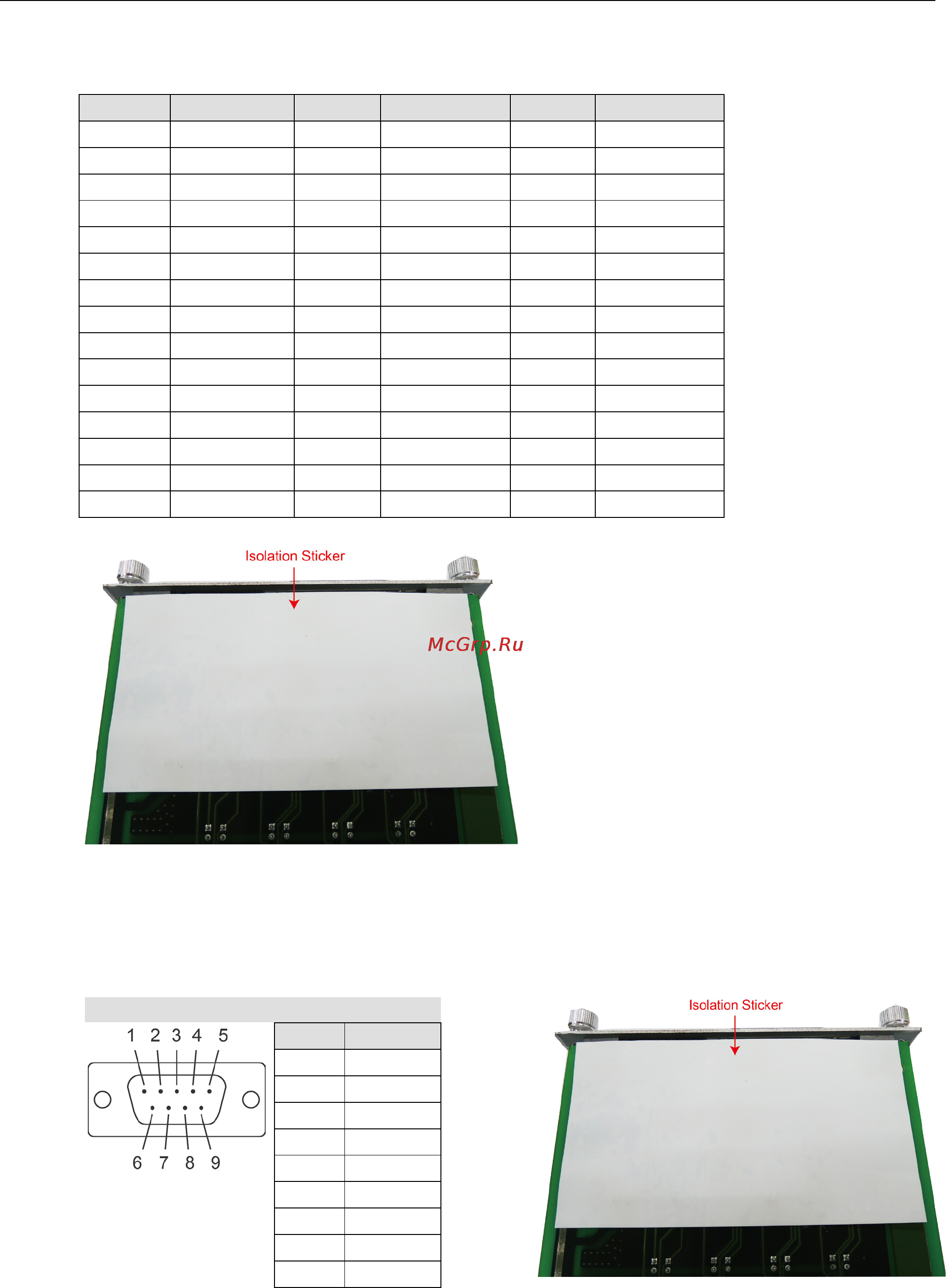

TC-6000 Series Expansion Modules Hardware Connection Description
3-4
2-wire RS-485
Pin Signal Pin Signal Pin Signal
1 Data3+(B) 16 – 31 –
2 – 17 Data3-(A) 32 –
3
–
18
–
33
GND3
4 – 19 – 34 –
5 Data2+(B) 20 – 35 –
6 – 21 Data2-(A) 36 –
7 – 22 – 37 GND2
8 – 23 – 38 –
9 Data1+(B) 24 – 39 –
10 – 25 Data1-(A) 40 –
11 – 26 – 41 GND1
12 – 27 – 42 –
13 Data0+(B) 28 – 43 –
14 – 29 Data0-(A) 44 GND0
15 – 30 –
Do not remove the isolation sticker on the back of the module.
TC-CP02-DB-T CAN Bus Module
The TC-CP02-DB-T offers two CAN bus ports with DB9 male connectors. Use a cable to plug your CAN device
into the module’s serial port. The pin assignments are shown in the following table:
DB9 Male CAN bus Pinouts
Do not remove the isolation
sticker on the back of the module.
PIN CAN
1
-
2
CAN
-L
3
-
4
-
5
-
6
-
7
CAN
-H
8
-
9
-
