TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-16

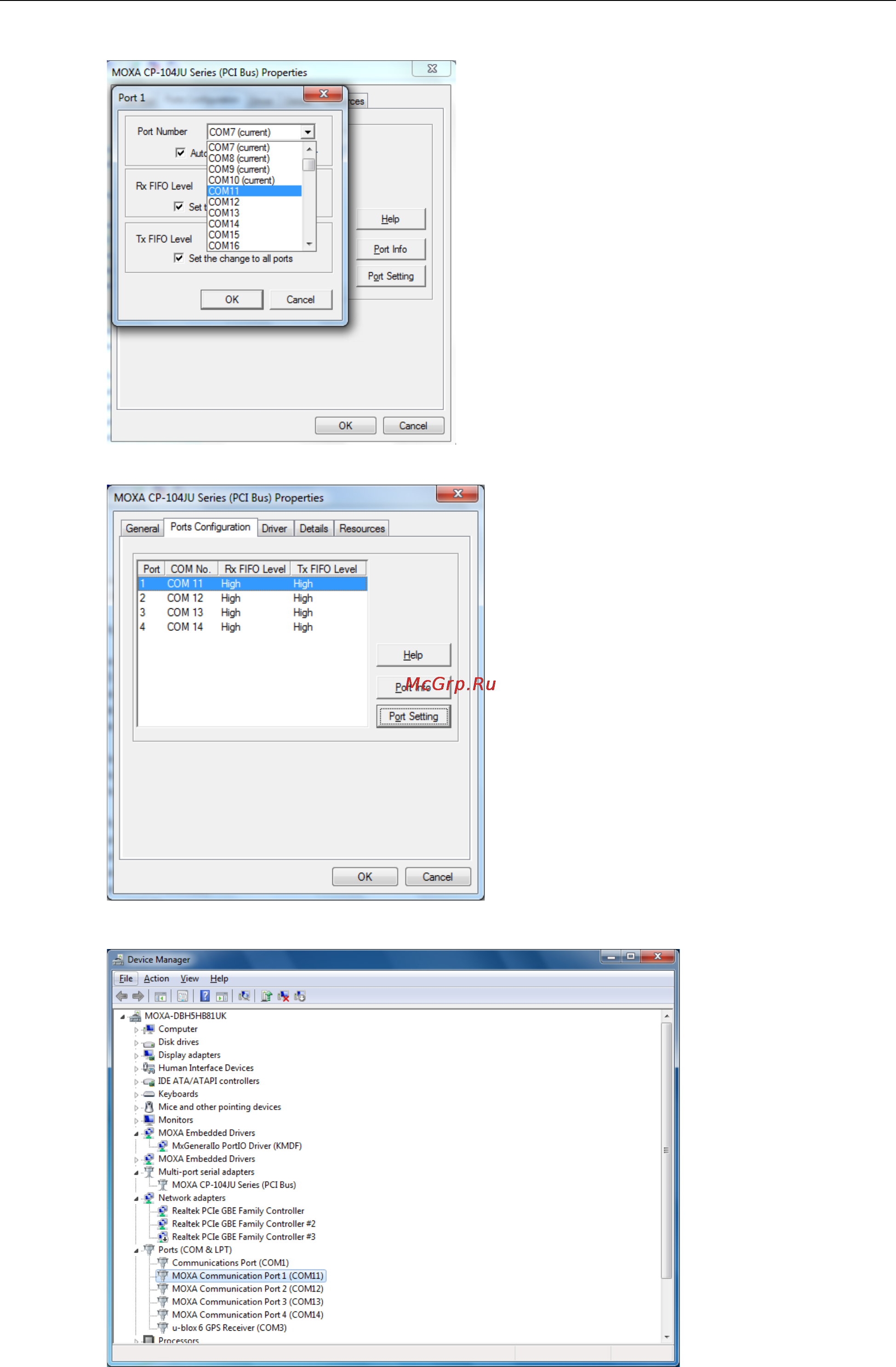

5. Select the new port name and then click OK.
6. Make sure the port names are correct, and then click OK to activate the settings.
7. Refer to Ports (COM & LPT) to verify that the port names have been changed.
