26
3) Connect the scan tool to your computer through the USB cable
provided.
4) From System Setup screen in scan tool, use the UP/DOWN
scroll button to select Update Mode, and press the OK button.
5) Select the programs to be updated in your computer. There are
two types of programs: operating system and DTC library.
(Figure 3.13)
6) Click Update in the MaxiLink Tool Kit window to begin
updating.

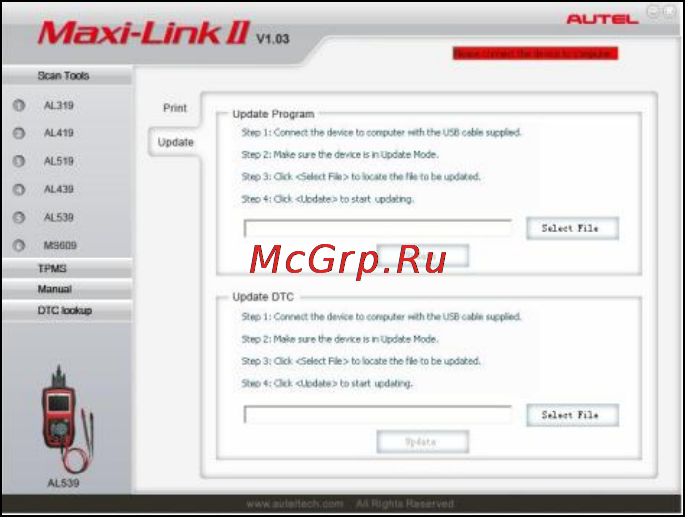

Figure 3.13
7) During the update procedure, the scan tool displays a message
“Update Program. Please wait…”.
8) When the update has finished, the scan tool will display a
message “Program Update has been done!”
9) Restart the scan tool to finish the whole update.
NOTE: When you made a wrong choice and the scan tool is unable
to work properly, you may need to update the programs. To hold
LEFT scroll button and power on the scan tool, you will enter the
Update Mode forcedly. Then follow the update procedure to refresh
the program.
