Autel AutoLink AL539B [78/92] Starter test procedure
![Autel AutoLink AL539B [78/92] Starter test procedure](/views2/1200931/page78/bg4e.png)
76
2. Check state-of-charge of battery. For accurate cranking voltage
test results, the battery must be at least 75 percent charged.
3. Make sure the handbrake on and the gear is on N or P.
STARTER TEST PROCEDURE
There are two ways to do this test.
A. Connecting to DLC with OBDII connector.
B. Connecting to battery with probes.
Follow the steps to complete the test:
1. Perform PRETEST.
2. Turn off all of the vehicle's electrical accessories.
3. Connect the tool to vehicle‟s DLC with OBDII connector, or
contact the scan tool probes to the battery: red to the positive (+)
terminal, black to the negative (-) terminal.
4. Turn on the scan tool and wait for Main Screen to appear.
(Figure 3.1)
5. Use the UP/DOWN scroll button to select START TEST from
main screen. (Figure 3.1) The scan tool will show as below.

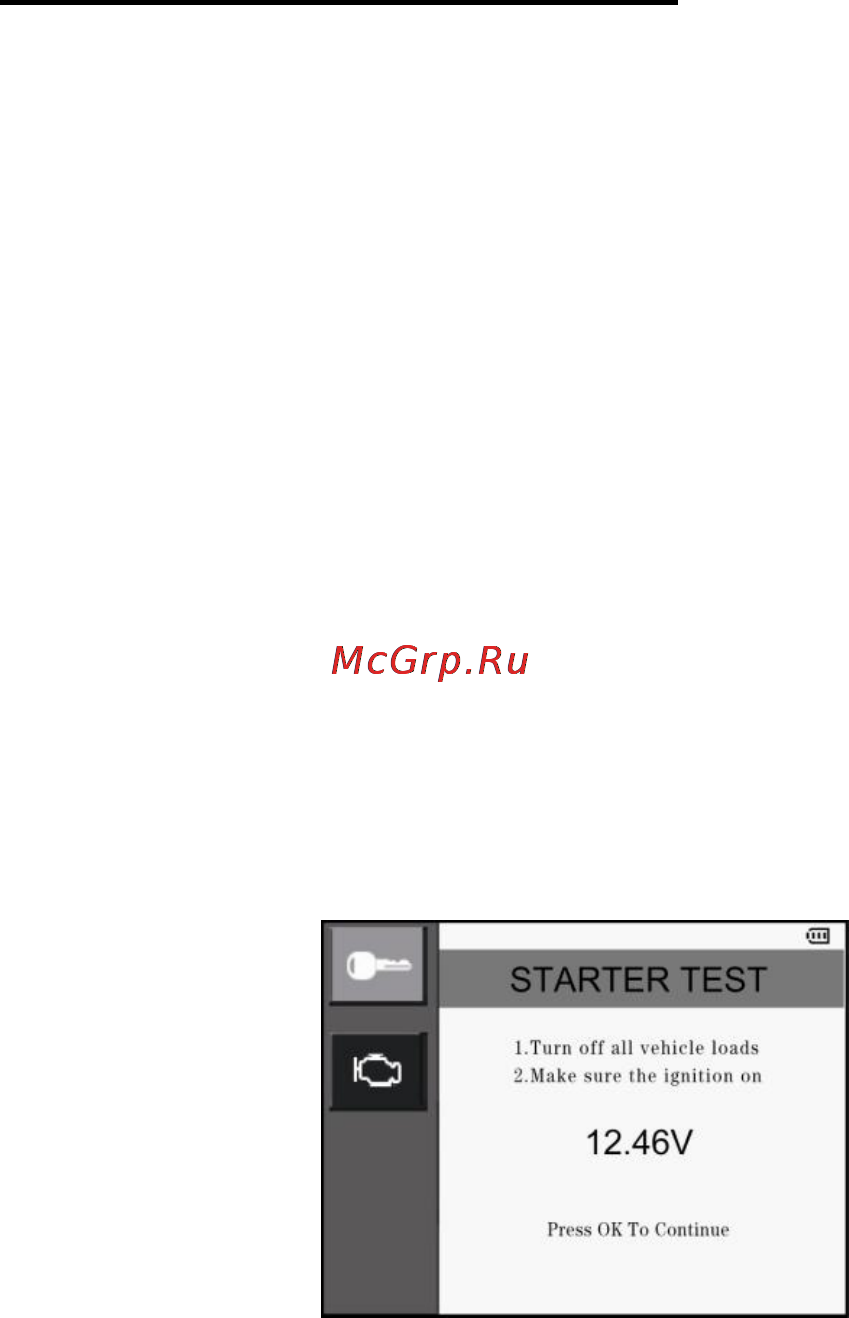

Figure 8.1
6. Check that the ignition is on and engine stops. Then press OK
button to continue. The scan tool will prompt you to start
engine.
