Руководство пользователя Страница: 74

Autel AutoLink AL539B [74/92] Diodes

Figure 7.3

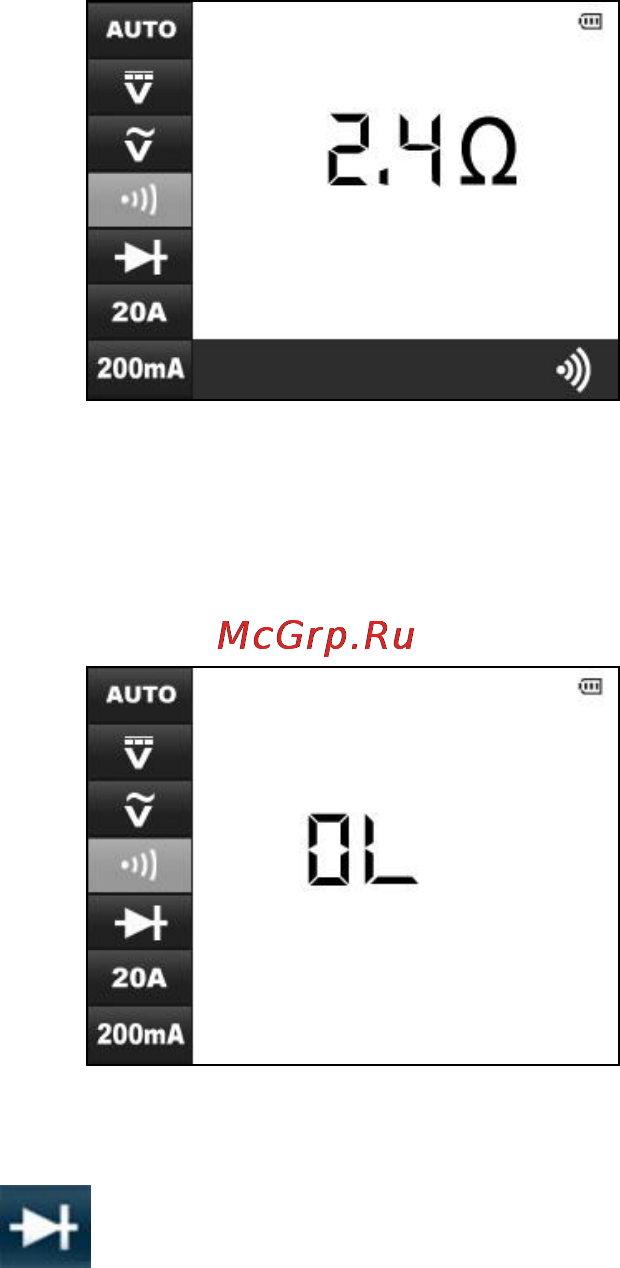

NOTE: If the resistance of circuit is more than 50 ohm, the scan

tool would display 0L as below.

Figure 7.4

7.5 Diodes

While the tool in this mode, contact the probes to a diode in the

correct polarity: red to the positive (+) terminal and black to the

negative (-) terminal, then the LCD display will read forward voltage

drop of this diode.
