88
10. Print Data
The Print Data function allows printing out diagnostic data
recorded by the scan tool or customized test reports.
To print out retrieved data, you need the following tools:
AutoLink
AL539/AL539b scan tool
A PC or laptop with USB ports
A USB cable
1) Install Maxi-Link II applications through the included CD, or
download the applications from our website:
www.auteltech.com or our distributors‟ site.
2) Connect the scanner to computer with the USB cable supplied.

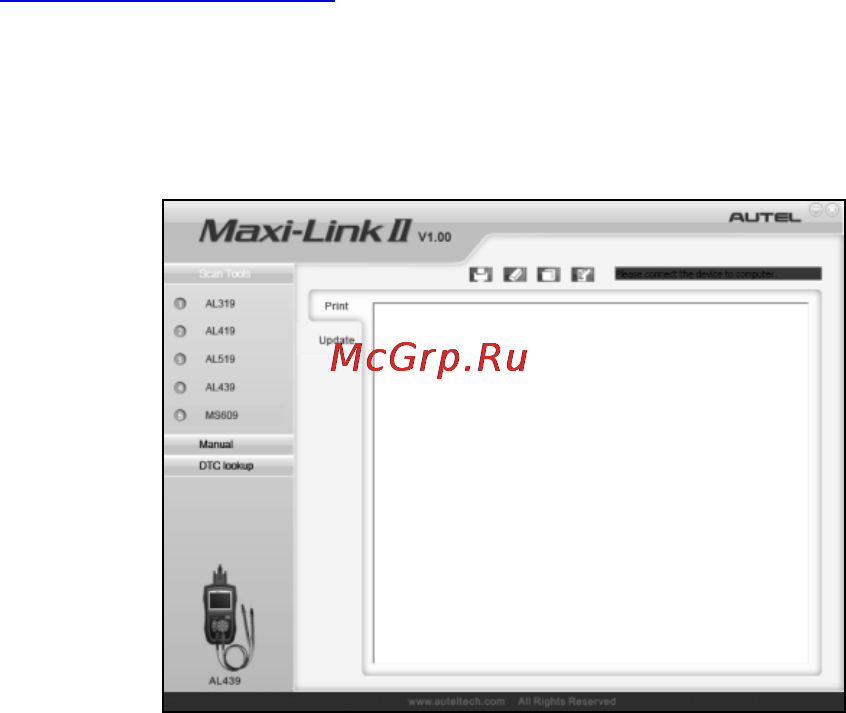

3) Run Maxi-Link II Tool Kit in your computer.
Figure 10.1
4) Use the UP/DOWN scroll button to select Print Data from
Main Menu in the scan tool, and press the OK button. (Figure
3.1)
5) Use the UP/DOWN scroll button to select the desired item to
print from Print Data menu.
