Autel AutoLink AL539B [81/92] Charging system test

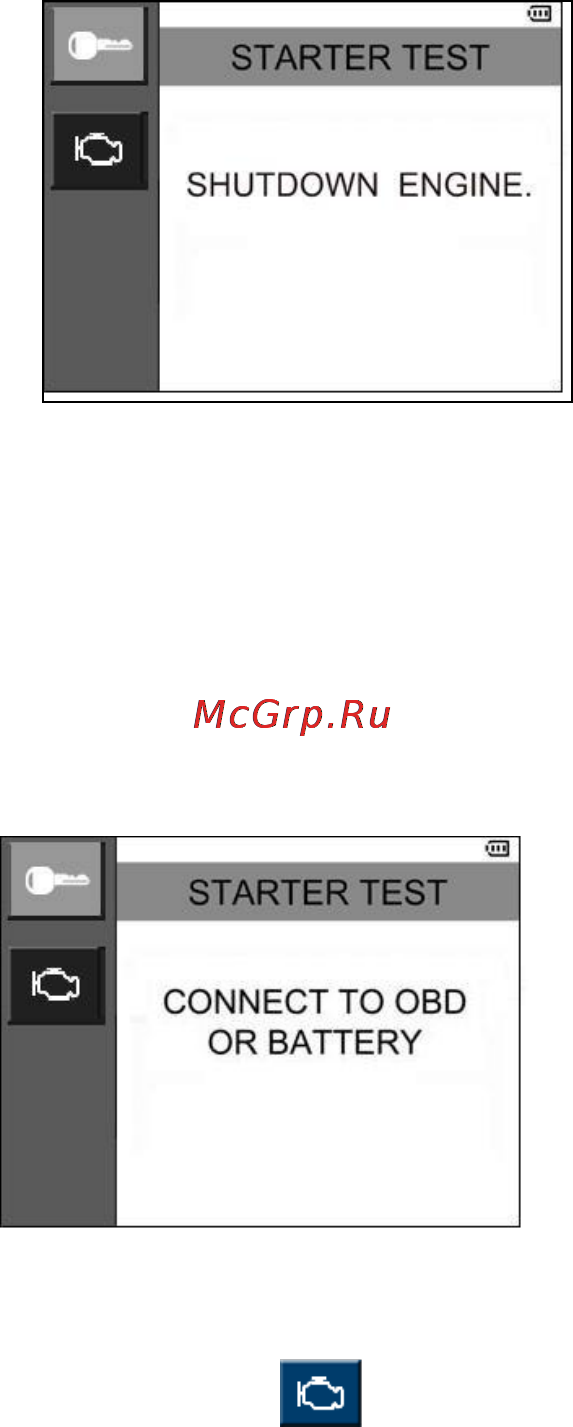

8. Press OK button to do the test again. The scan tool will prompt

you to shutdown the engine.

Figure 8.8

9. Follow the steps above to do the test again.

 If the scan tool doesn‟t connect to vehicle or battery, it will

display a message as below. Check that OBDII connector is

securely connected to the DLC, or battery contact is clean and

well connected, then continue the test procedure.

Figure 8.9

8.2 Charging System Test

All late-model vehicles need a constant supply of power to run their

electronic components, such as computers, daytime running lights

and stereo systems. Most 12-volt charging systems produce more

than 12 volts, some as high as 14.5 volts of DC power. Many
