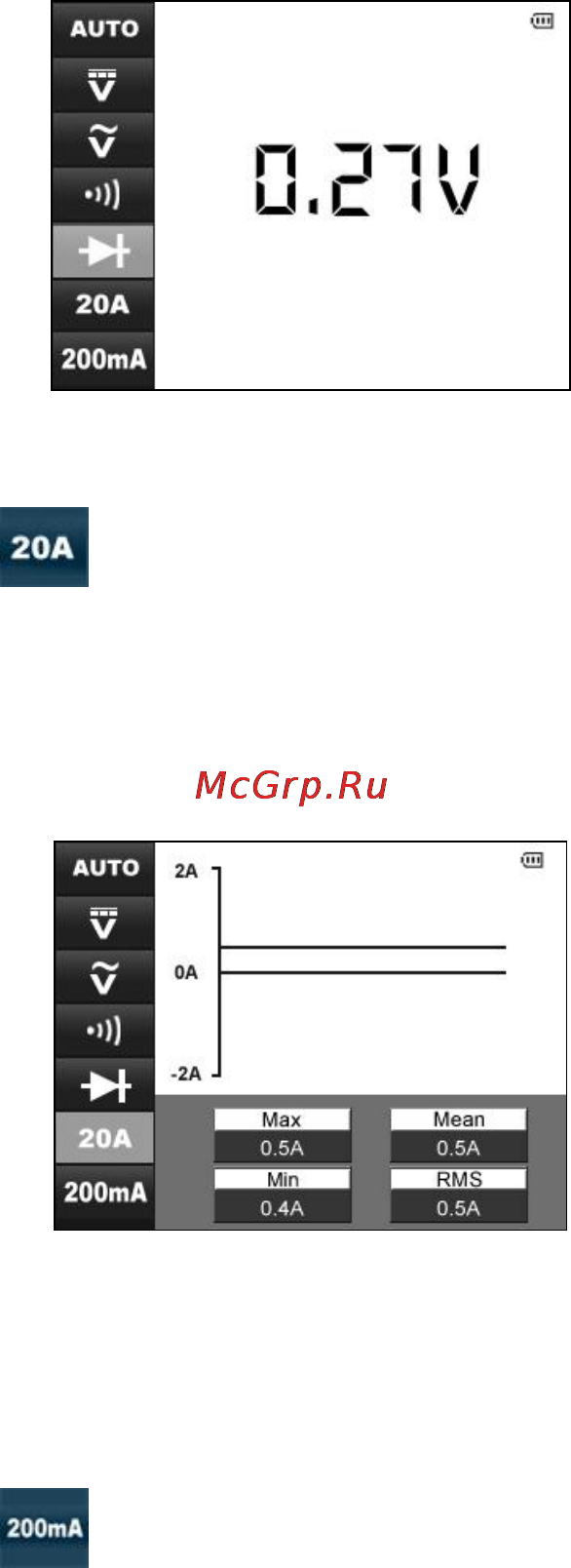

Figure 7.5

7.6 Current

While the tool in this mode, contact the probes to a circuit, then the

LCD display will read the current between these two probes. Current

range of this mode is 0 ～20A.

Figure 7.6

NOTE: If the current being tested is greater than 20A, it may blow

the fuse inside the tool.

7.7 Current

While the tool in this mode, contact the probes to a circuit, then the

LCD display will read the current between these two probes.

Current range of this mode is 0 ～ 200mA.
