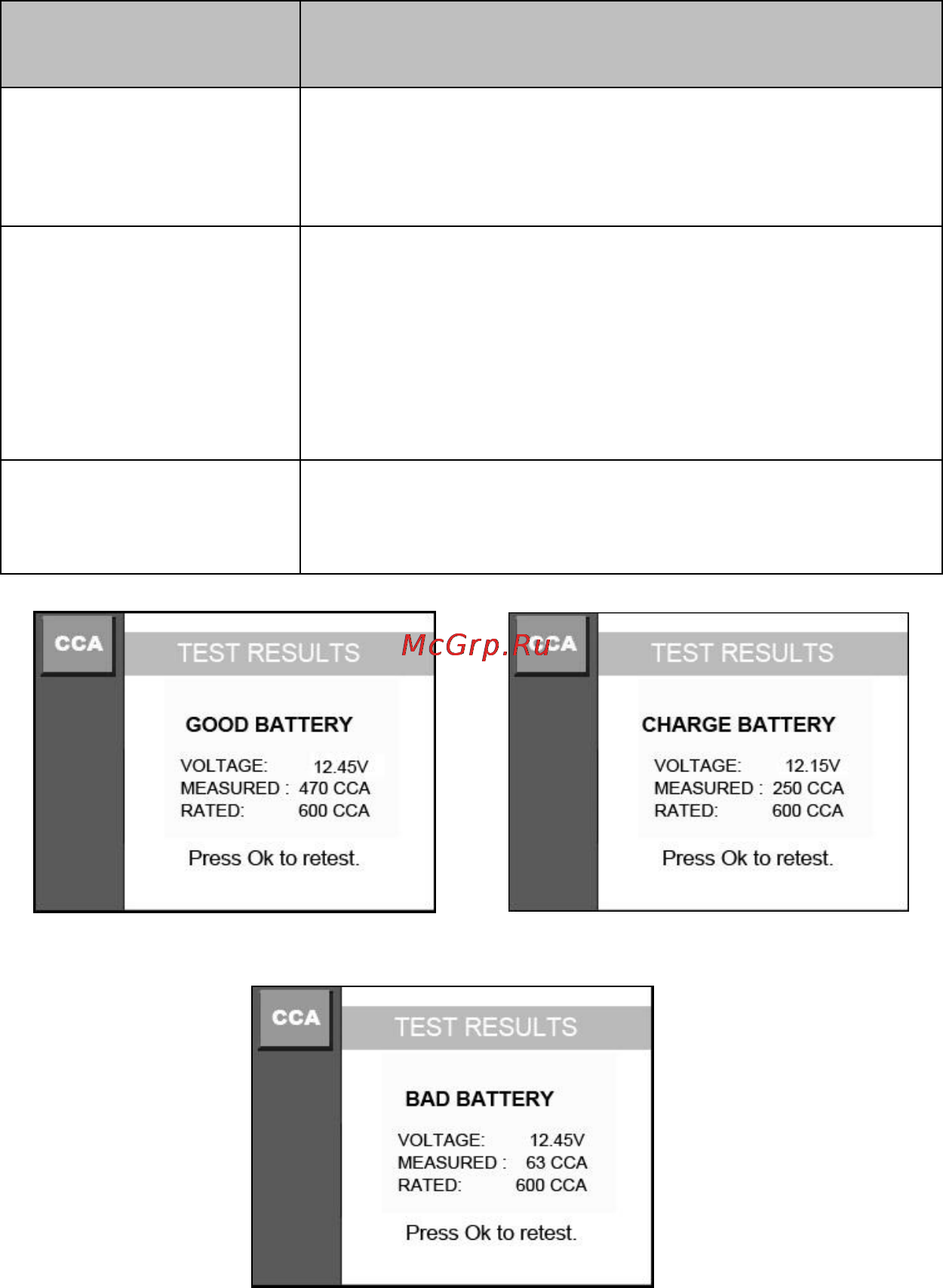

Table 3: CCA Rating Test Decisions and Recommendations

Decision

Action

GOOD BATTERY

The battery is normal and ready for service.

(Figure 9.5)

CHARGE BATTERY

Fully charge the battery and retest. Failure to

fully charge the battery before testing may

cause false readings. If charge battery appears

again after you fully charge the battery, replace

the battery. (Figure 9.6)

BAD BATTERY

Replace the battery and retest. (Figure 9.7)

Figure 9.6 Figure 9.7

Figure 9.8
