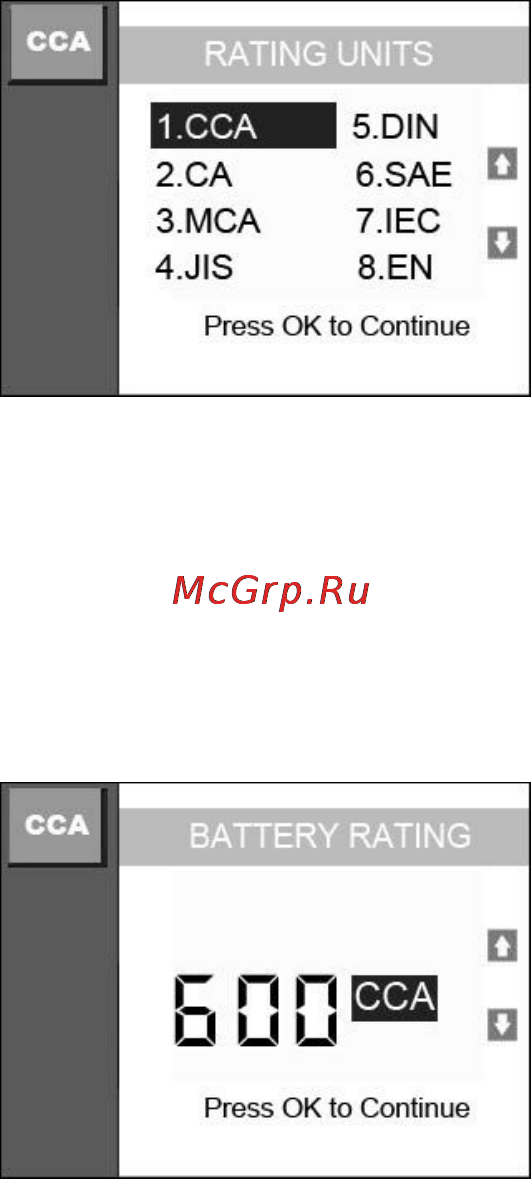

Figure 9.4

7. For example, select CCA in the list and press OK button to

continue. Then the screen shows as Figure 9.5. Press the UP/

DOWN scroll button to increase or decrease rating units by 20

units and then press OK button to confirm.

Figure 9.5

8. The scan tool will start the test and there may be three test

results.
