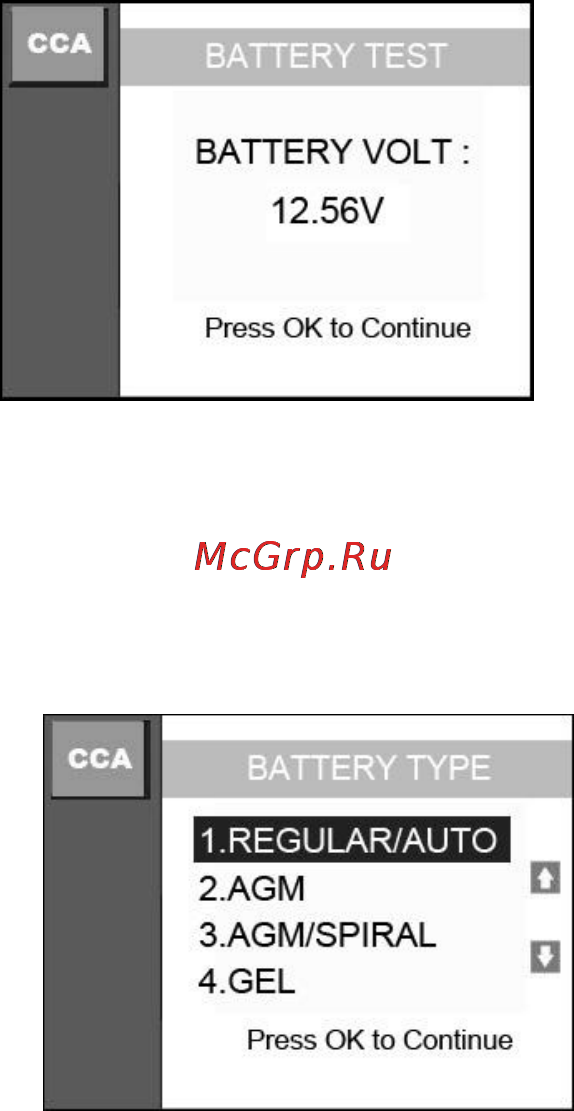

Figure 9.2

5. Press OK button to start test. The tool will display a list of

battery types for selection. (Figure 9.3) Select the right type of

battery and press OK button to continue.

Figure 9.3

6. Select the battery‟s capacity rating standard. The standard and

the rating units required in step 7 are printed on the battery label.

If the information is unreadable, please contact the battery

manufacturer.
