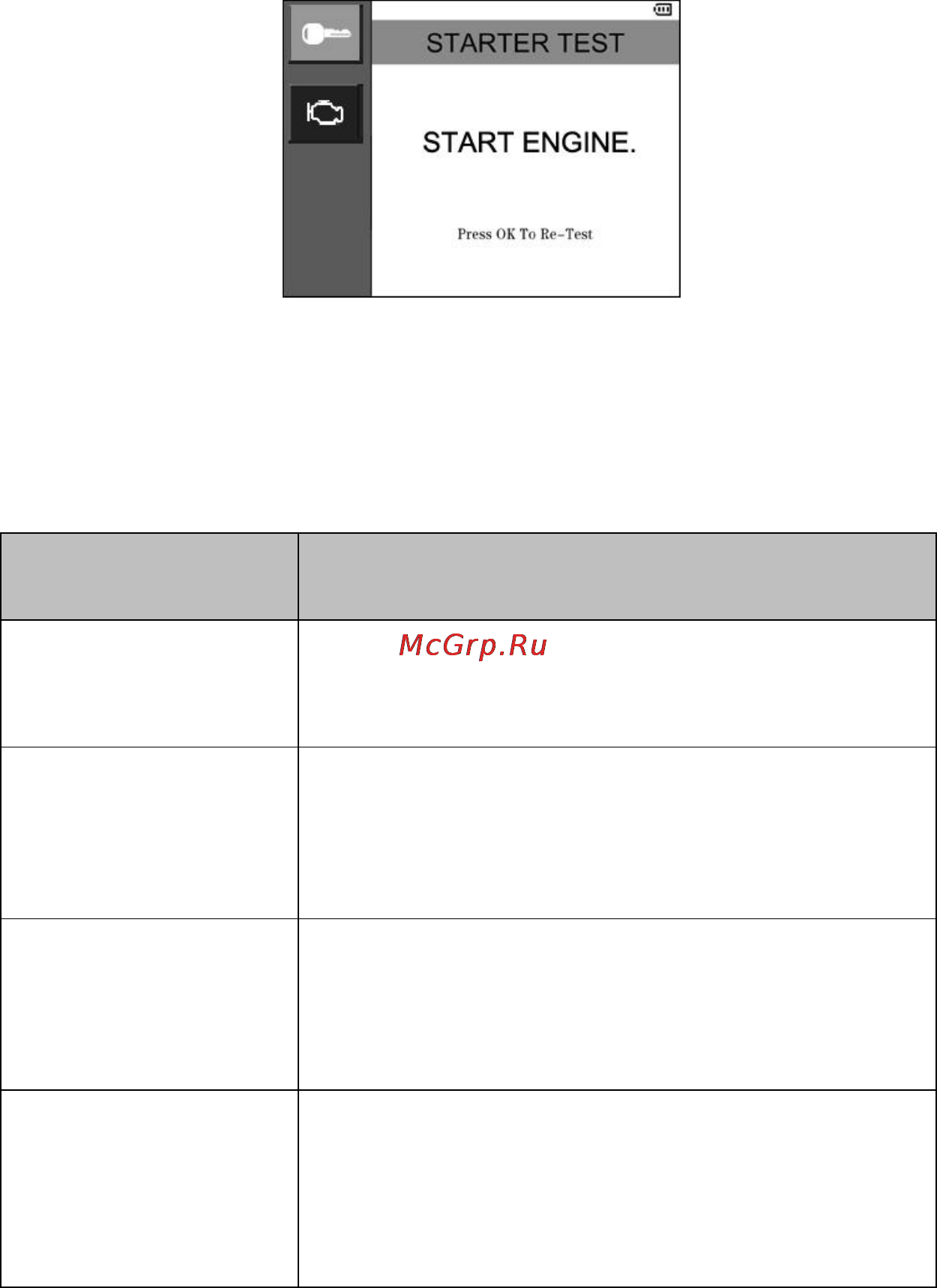

Figure 8.2

7. Start engine and begin the test. There may be five test results.

Table 1: Starter System Decisions and Recommendations

Decision

Action

CRANKING NORMAL

The starter voltage is normal and the starting

system is OK. (Figure 8.3)

CRANKING

ABNORMAL

The vehicle can’t start and there is a problem

with the starting system. Check the battery,

connection, wiring and starter. (Figure 8.4)

CRANKING LOW

The starter voltage is low and you’d better

check the starter system before a problem

happens. (Figure 8.5)

CHARGE BATTERY

The starter voltage is low and the battery is

discharged. Fully charge the battery and retest

the starter system. (Figure 8.6)
