5. Start the engine and keep it running at 2000 rpm for over 15

seconds. Then press OK button and the scan tool will show as

below.

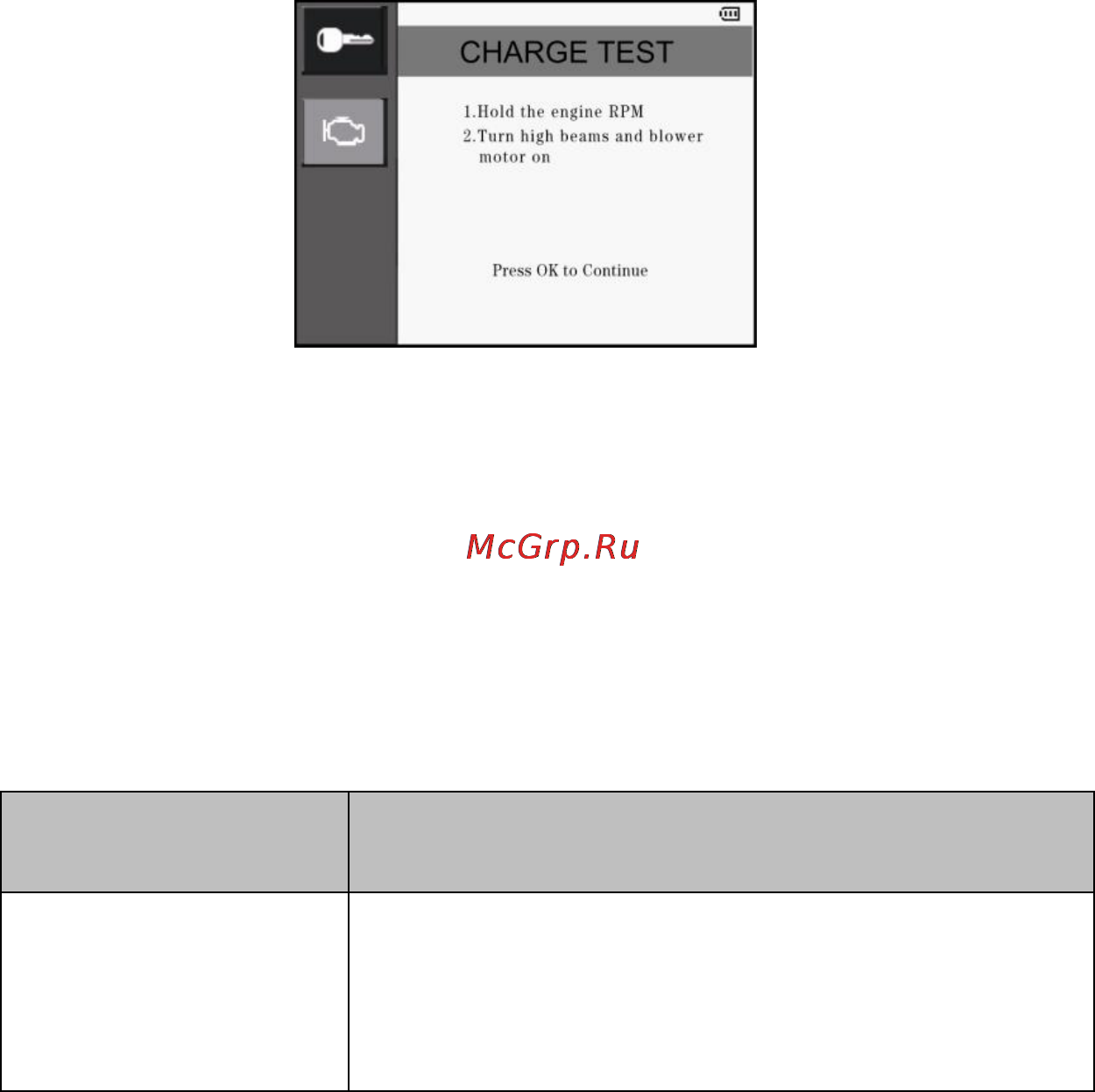

Figure 8.11

6. Follow the instructions to hold the engine rpm and turn on high

beams and blower motor. Then press OK button.

7. The scan tool starts to record the charging voltage with loads on.

There may be four test results.

Table 2: Charging System Decisions and Recommendations

Decision

Action

NORMAL

The charging system is showing normal output.

No problem detected. (Figure 8.12)
