- 13 -

CHAPTER 3

ACCESSING THE CAMERA

3.1 Using IPSetup

The camera comes with a conveniently utility, IPSetup, which is included

in the Installation CD-ROM, allowing you to search the camera on your

network easily.

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to

initiate the Auto-Run program.

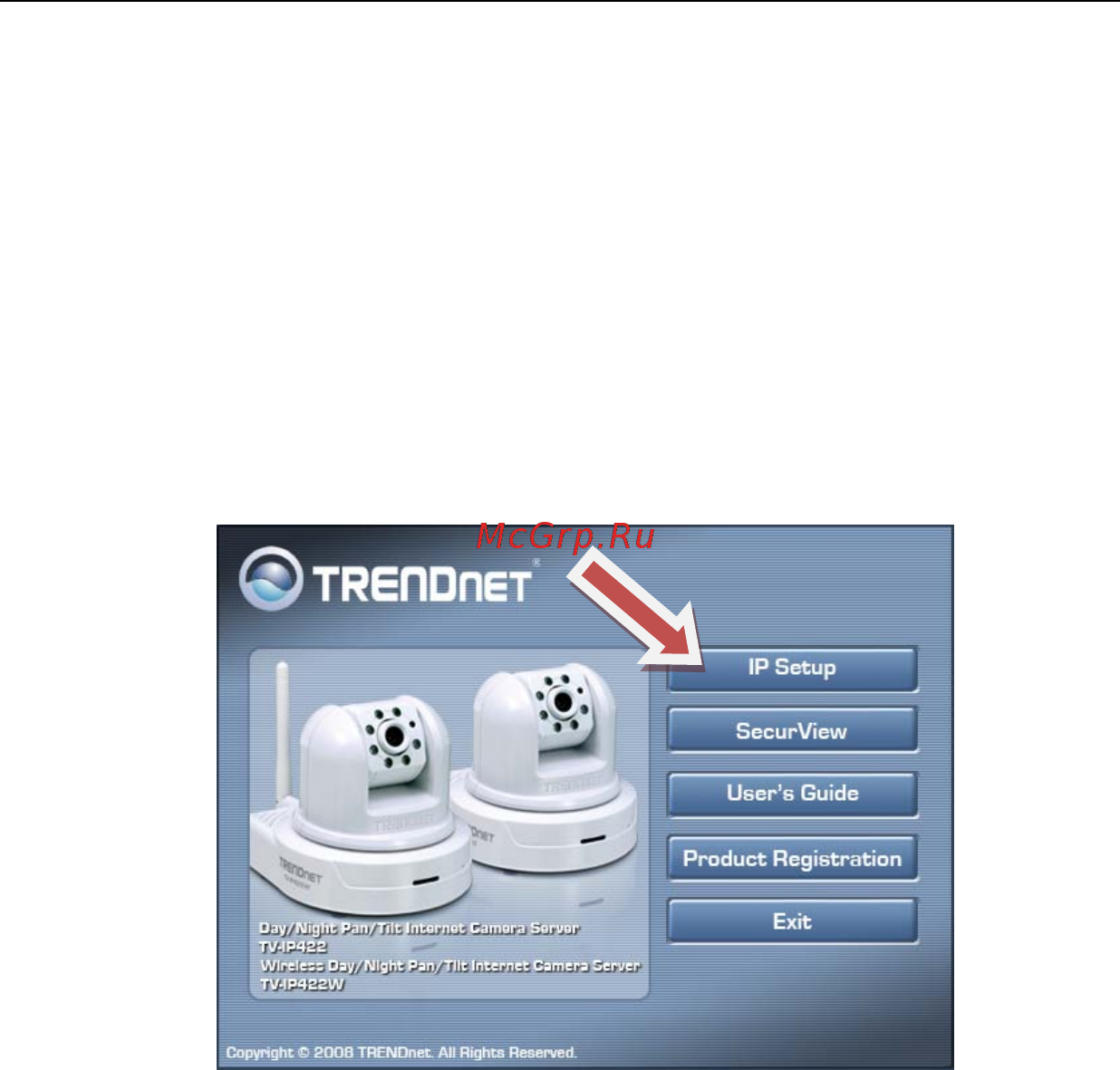

2. Click the IP Setup from the Auto-Run menu screen. Then IP Setup

Wizard will appear. Click “Next” when the Welcome to the IPSetup

Setup Wizard appears.
