Trendnet TV-IP422W [89/111] To set up motion detection options

- 88 -

NOTE If your player on the computer don’t have video codec to

playback the recorded video. You can download video codec from

http://www.xvid.org/downloads.15.0.html to support.

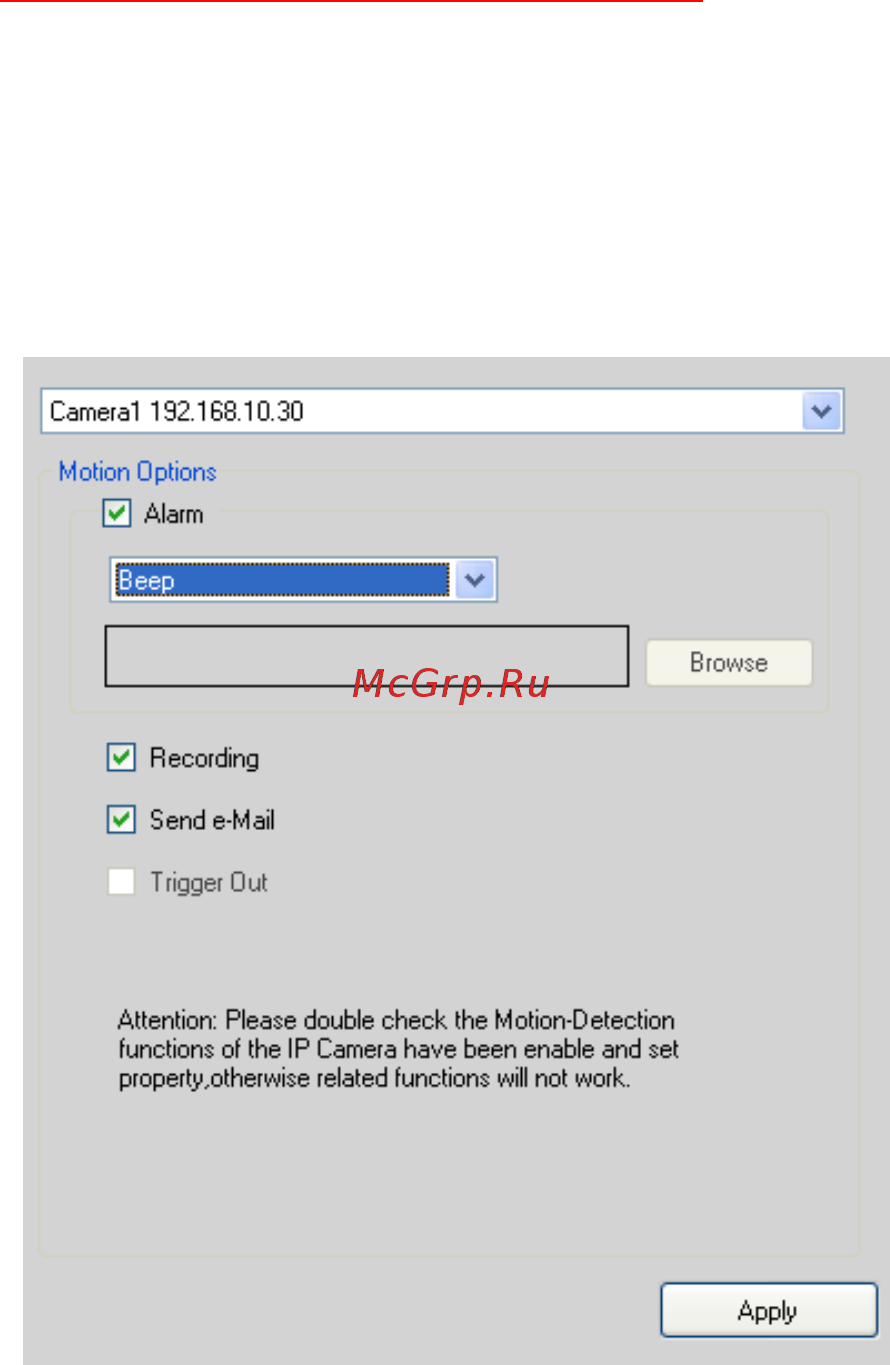

To set up motion detection options

When the motion detection function of the selected camera is enabled,

you can set the Motion Options by selecting Alarm, Recording, Send e-

Mail, and Trigger Out under SETTING > Motion Configuration.

 Alarm: Select Beep or Music to alert you for the motion detected.

When you select Music, you can customize the sound by clicking
