Trendnet TV-IP422W [18/111] Click this button to exit the program

- 17 -

- Camera Display Area: It shows the connected camera(s) within the

same network

Double click the IP address, it will link to Camera’s Web Configuration

page.

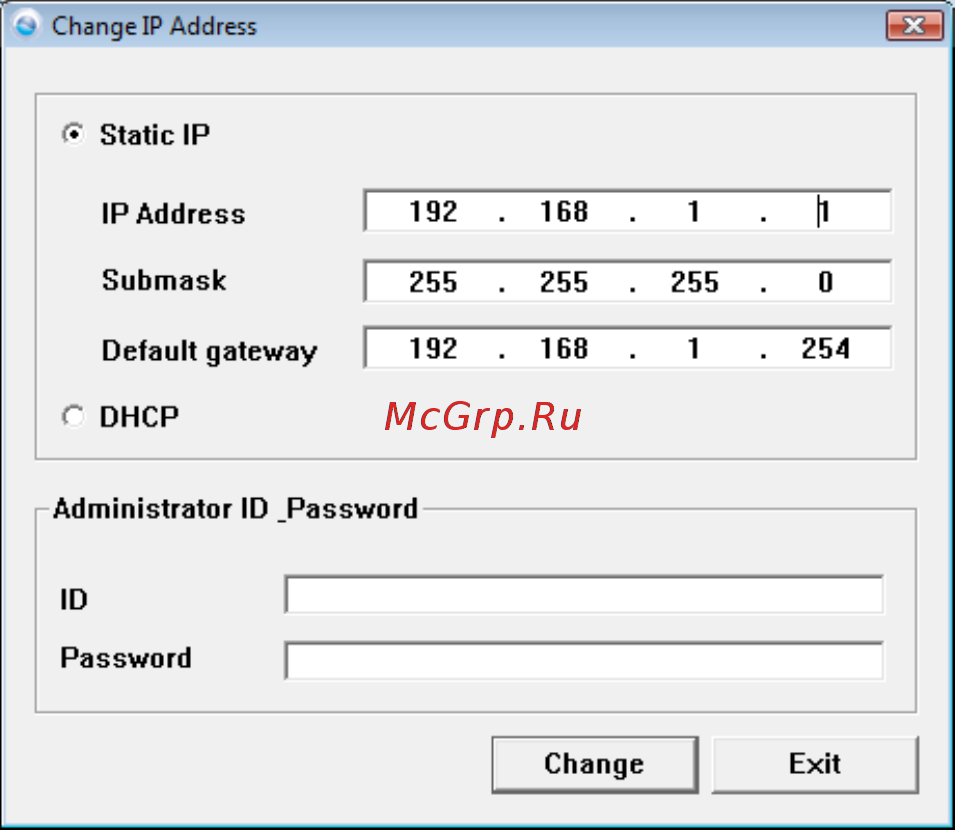

- Change IP: Click this button to bring up the following window. It

allows you to change the IP Address. You can select either Static IP

or click DHCP. Then, enter the Administrator ID & password. By

default ID/password is: admin. When complete, click “Change”.

- Search: Click this button to search the connected camera in the

same network.”

Exit: Click this button to exit the program.
