Trendnet TV-IP422W [19/111] Accessing to the camera

- 18 -

3.2 Accessing to the Camera

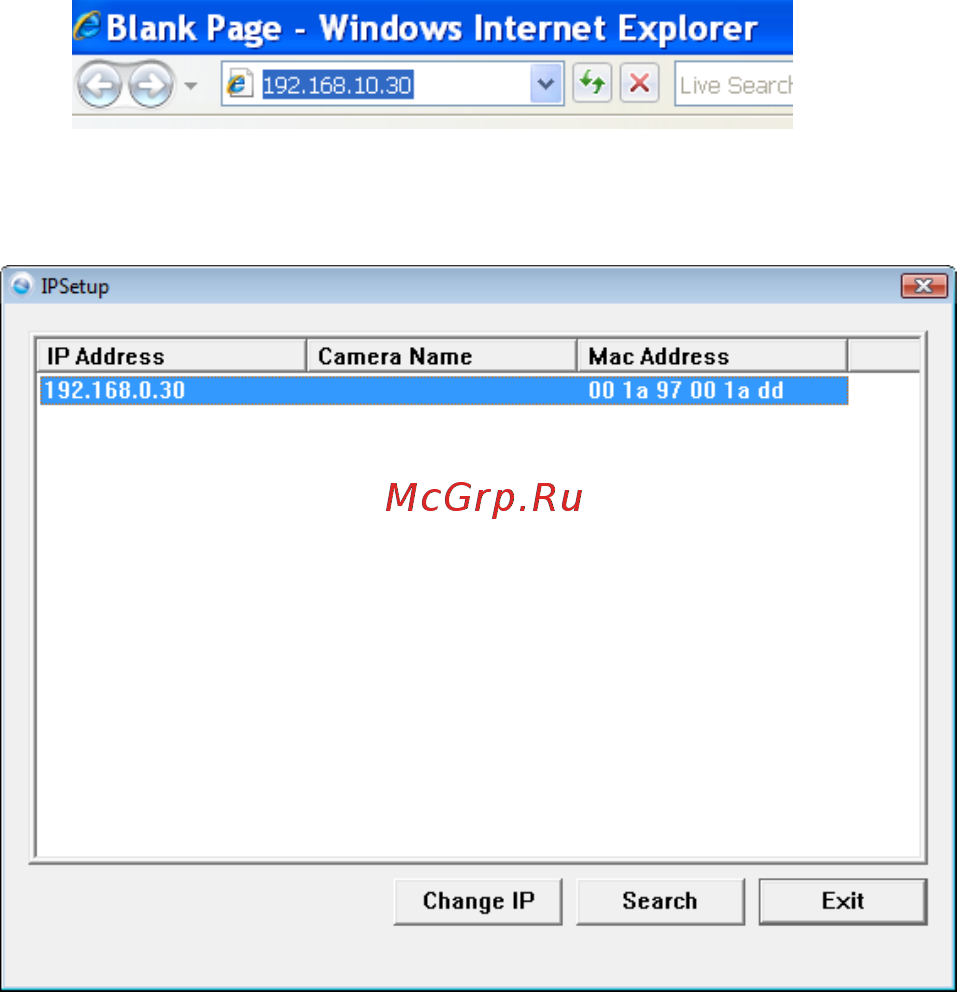

1. Open the Web browser on your computer (example showed in the

User’s Guide is based on the Internet Explorer)

2. Type the Camera IP address (For example, if your DHCP server assign

is as192.168.10.30) in the web browser URL and then press [Enter].

3. You can also double click on the selected camera from IPSetup which

will open IE browser.
