- 19 -

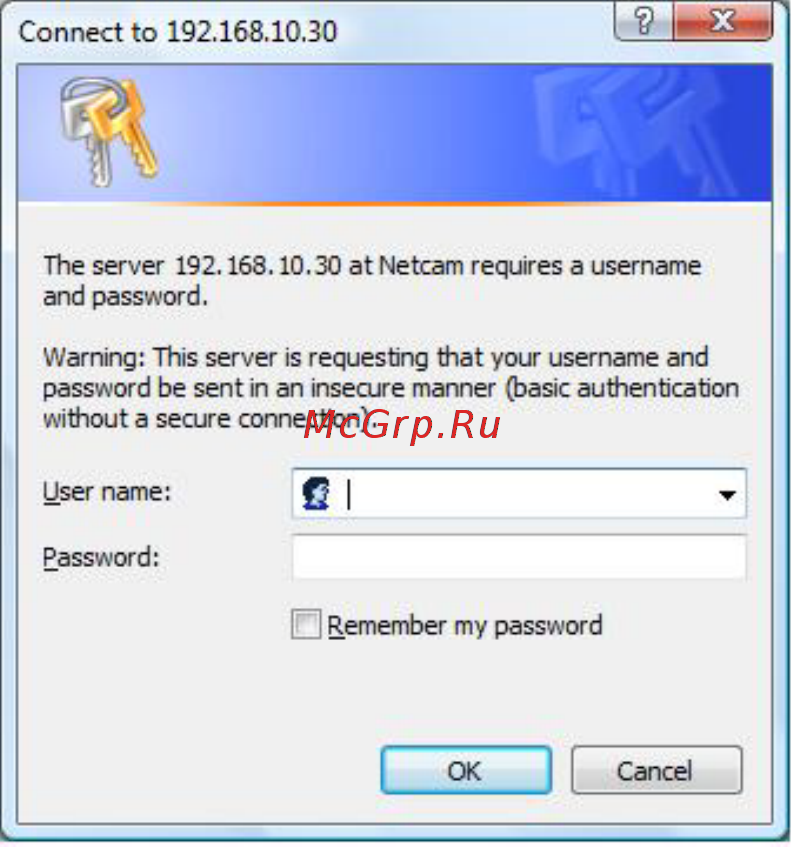

4. When the login window appears, enter the default User name (admin)

and password (admin) and press OK to access to the main screen of

the camera’s Web Configuration.

NOTE If you are initially access to the camera, you will be ask to install a

new plug-in for the camera. Permission request depends on the

Internet security settings of your computer. Click Yes to proceed.
