Trendnet TV-IP422W [81/111] To record video

- 80 -

To record video

SecurView™ provides three methods to record video clips: one is to click

the RECORD/All Record button to record manually; the second is to

record by motion detection; the third is to set the recording schedule in

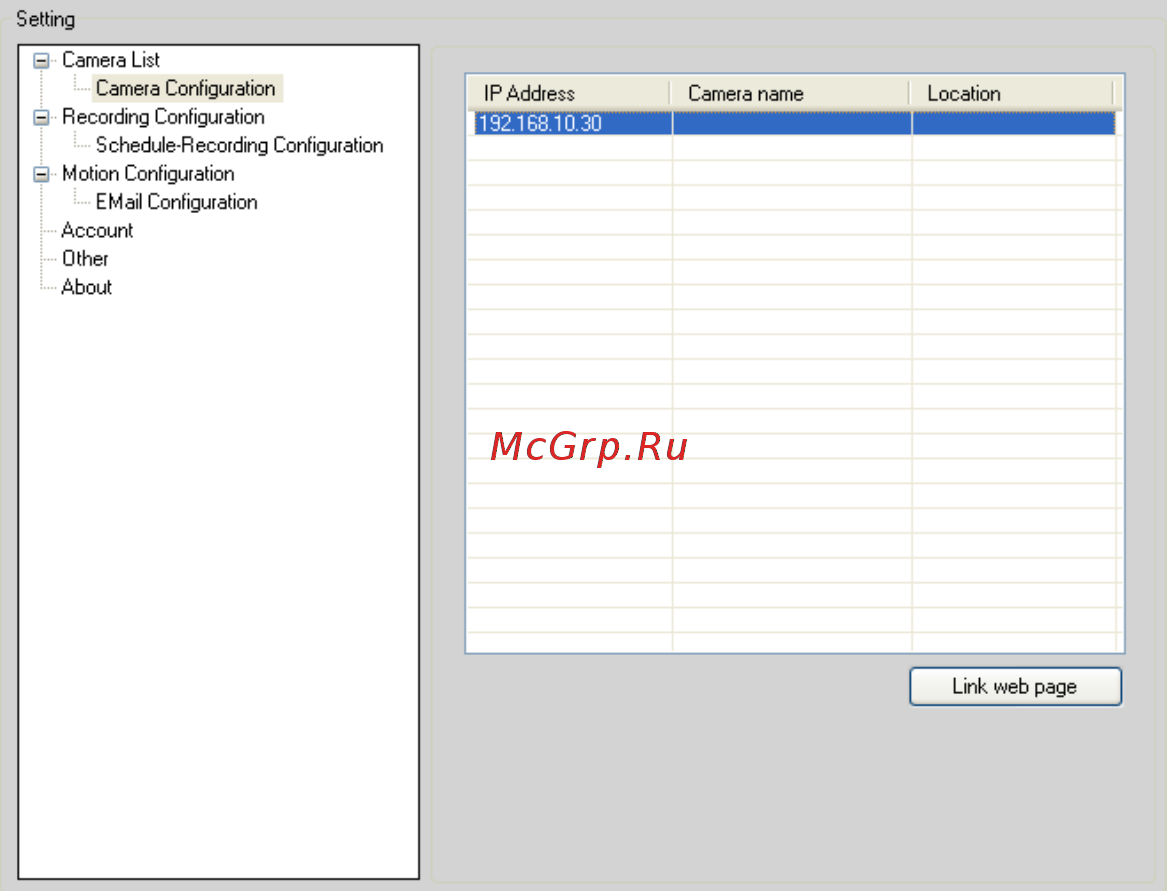

Setting > Recording Configuration > Schedule Recording

Configuration.

 Manually recording

Click RECORD/All Record and it starts recording. Click the button

again to stop.
