Trendnet TV-IP422W [86/111] To configure the recording settings

- 85 -

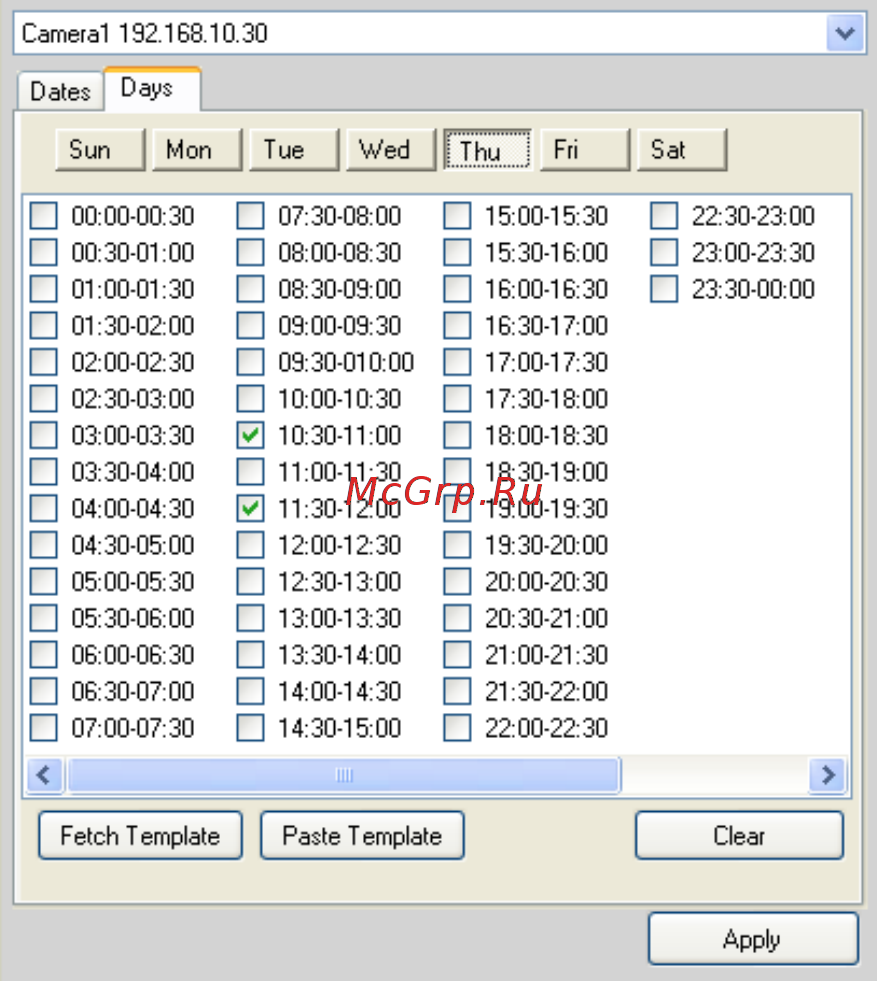

Days: First, select the camera from the pull-down list and select

Days tab. Then, select the weekday from the day buttons and then

set the time period. Click Apply to save the settings.

To configure the recording settings

To configure the recording settings, including the storage folder and

storage options, click SETTING > Recording Configuration.
