Trendnet TV-IP422W [76/111] To add a camera

- 75 -

To add a camera

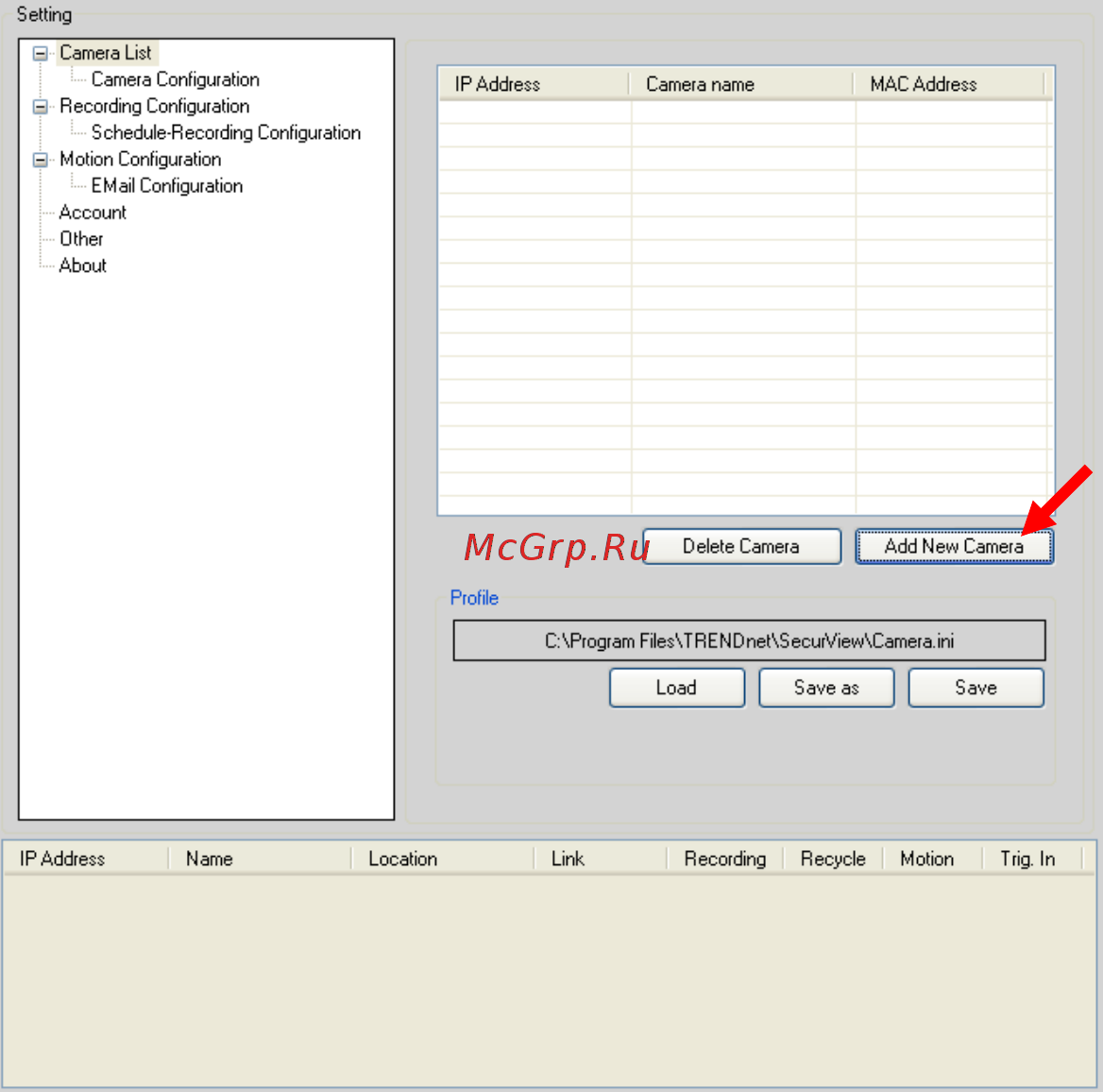

1. Click SETTING in the CONTROLS panel to display the Setting screen.

2. Click Add New Camera.
