- 76 -

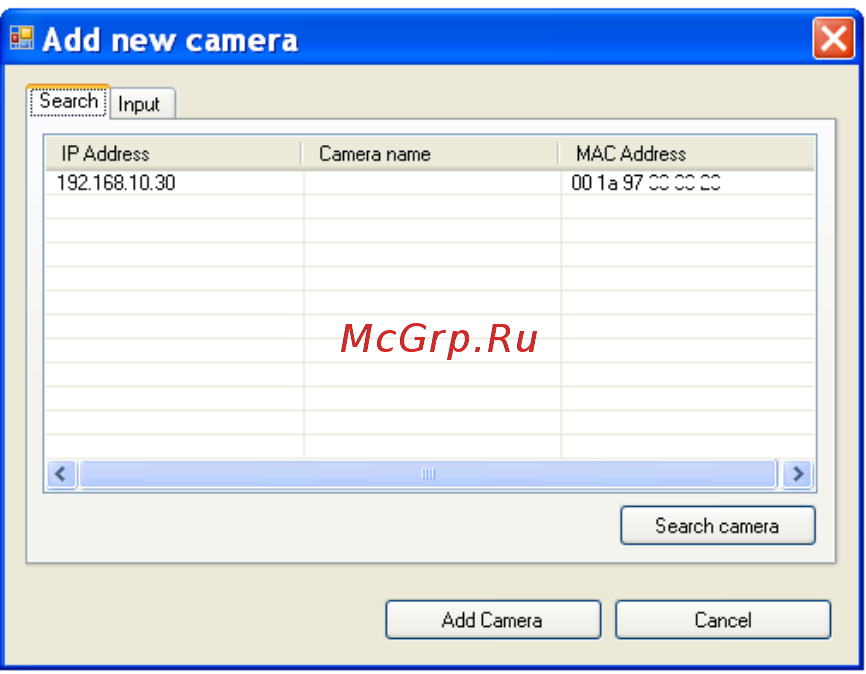

3. In the pop-up Add New Camera dialog window, you can:

 Select the Search tab if you are not sure of the camera’s IP

address. Click Search camera to search the available camera

within the network. Once the camera is found and is shown in

the list, select it and click Add Camera.

 Select the Input tab to add a camera by entering its IP address

directly. Enter the camera’s IP address and Port (default: 80), and

then click Add Camera.
