- 77 -

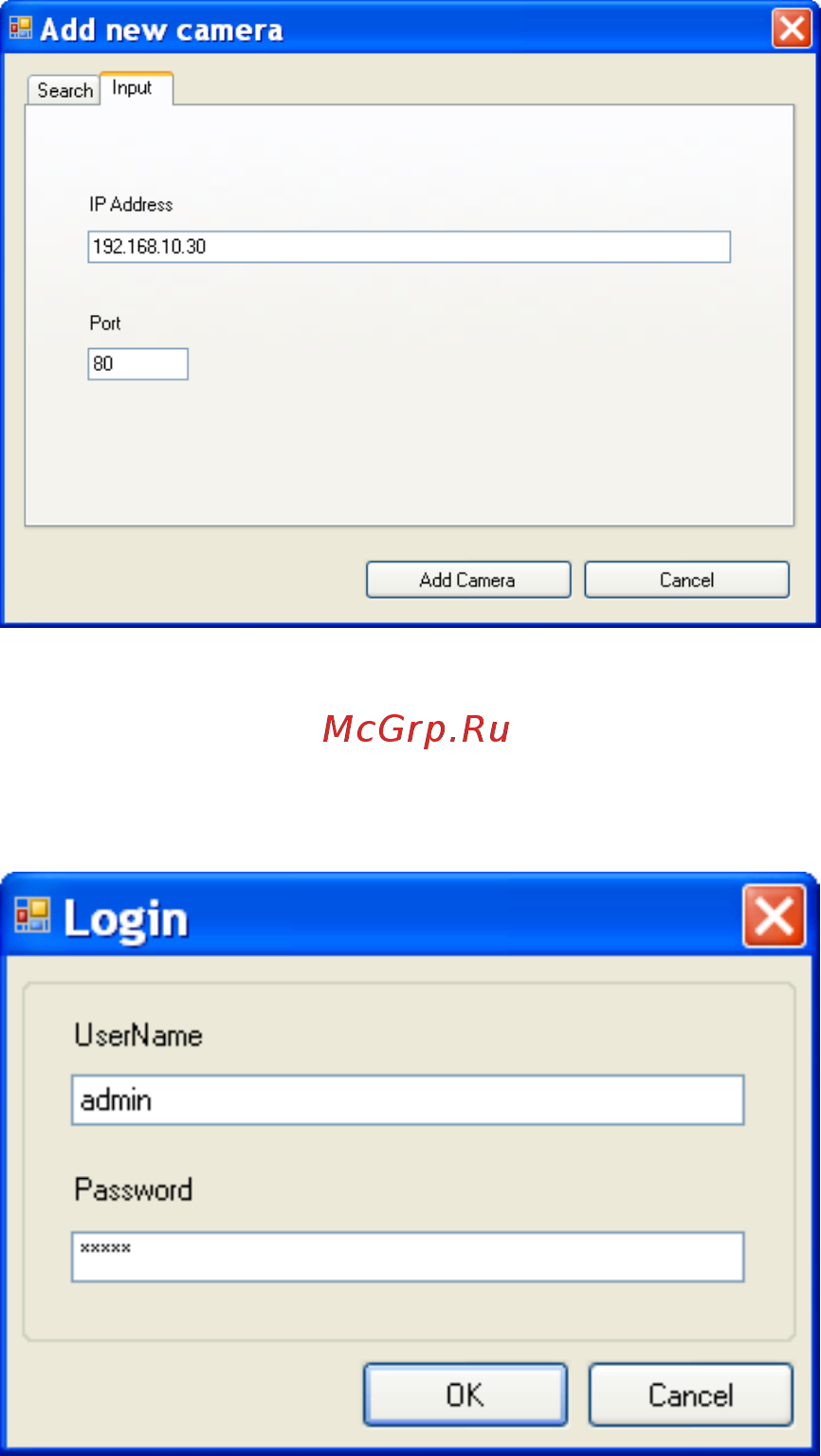

4. Enter the User name and Password for the camera, and then click OK.

The connected camera will be displayed in the Camera List.

5. Click SETTING to return to the Video View Window. The video view

of the selected camera will be displayed now.
