- 47 -
4.7 Event Server Configuration
The Event Server menu contains three sub-menus that allow you to
upload images to FTP, send emails that include still images, and store the
images to a NAS system.
When you complete the required settings for FTP, Email, or Network
Storage, click Test to test the related configuration is correct or not. Once
the camera connects to the server successfully, click Apply.

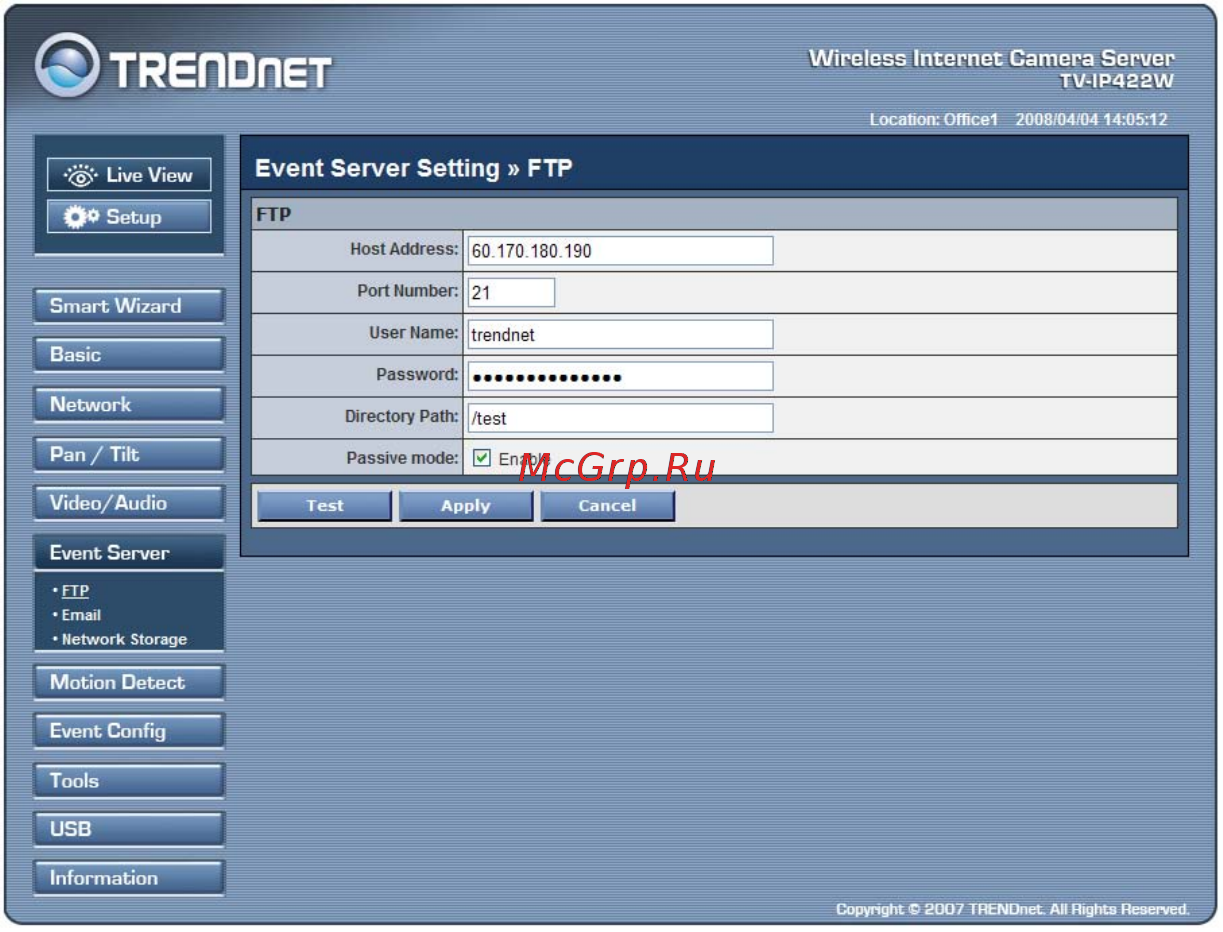

Event Server Setting>> FTP
- Host Address: Enter the FTP server IP address.
- Port Number: Enter the FTP port number.
- User Name: Enter the user name to login into the FTP server.
