4.3 Basic Setup

The Basic menu contains three sub-menus that provide the system

settings for the camera, such as the Camera Name, Location, Date & Time,

and User management.

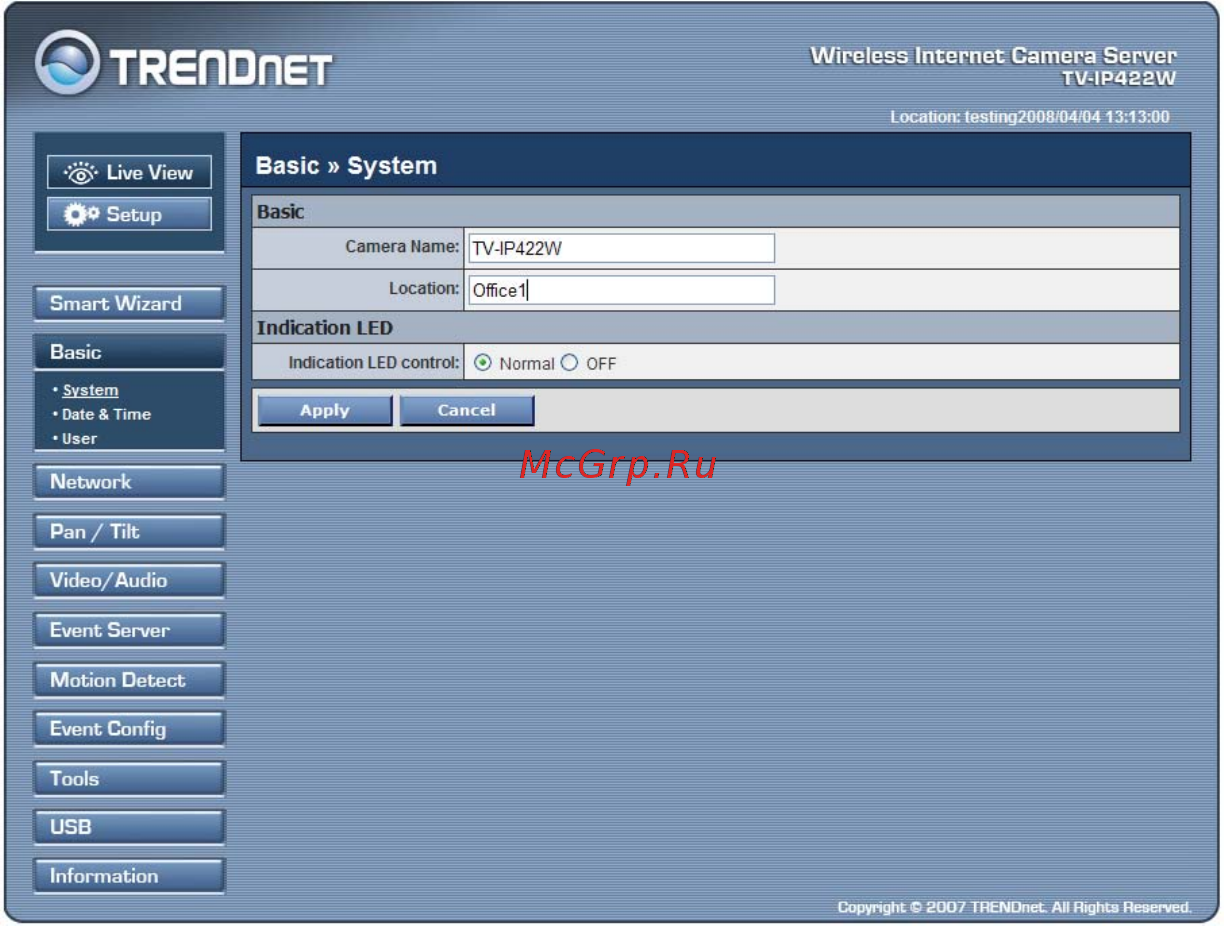

Basic >> System

 Basic

- Camera Name: Enter a descriptive name for the camera.

- Location: Enter a descriptive name for the location used by the

camera.

 Indication LED
