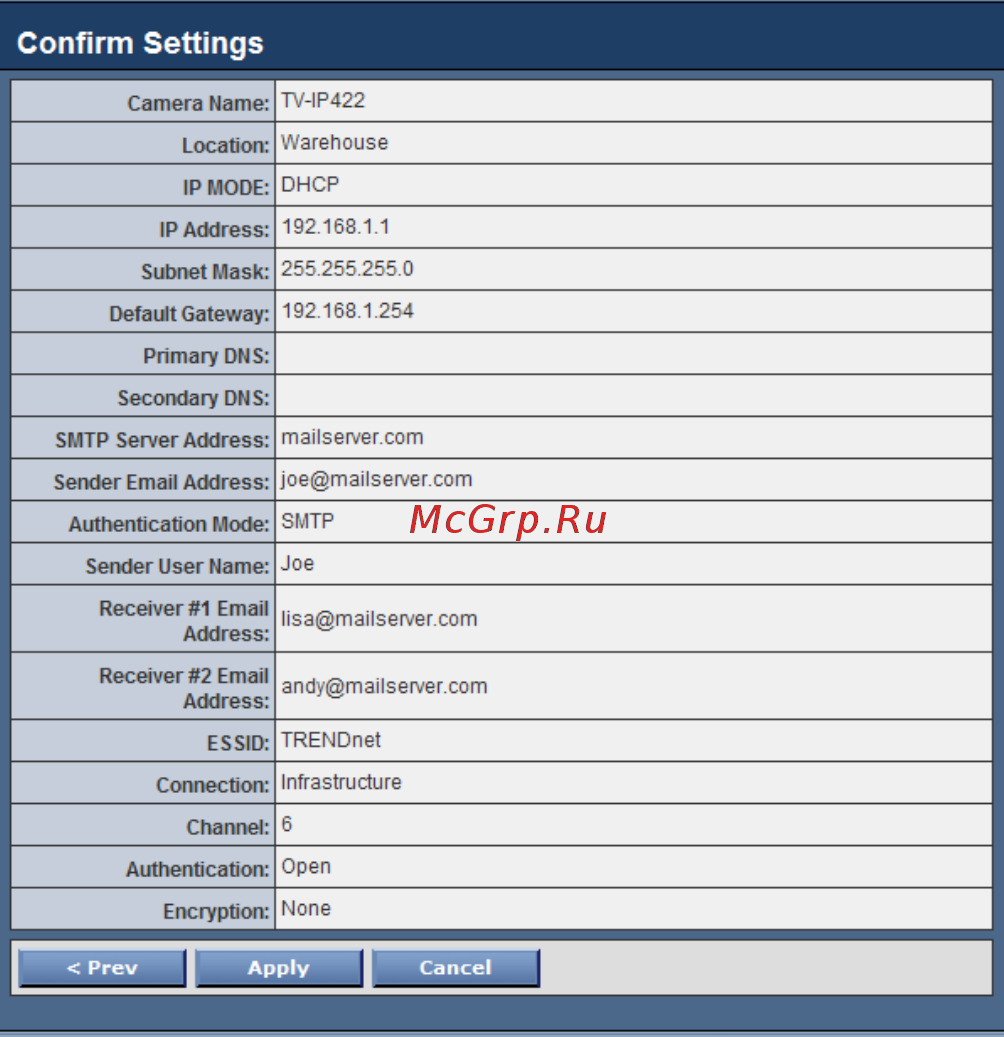

Step 5. Confirm Settings

Review your setting. Click Apply to save the setting and reboot the

camera. Click <Prev to go back to previous setting. Click Cancel to

existing the setting without any changes.
