NOTE The connected USB storage device can be used to store still

images only and as your host system backup. It is not

recommended to use the USB device as your major storage device.

4.12 Information

The Information menu displays the current configuration and events log

of the camera.

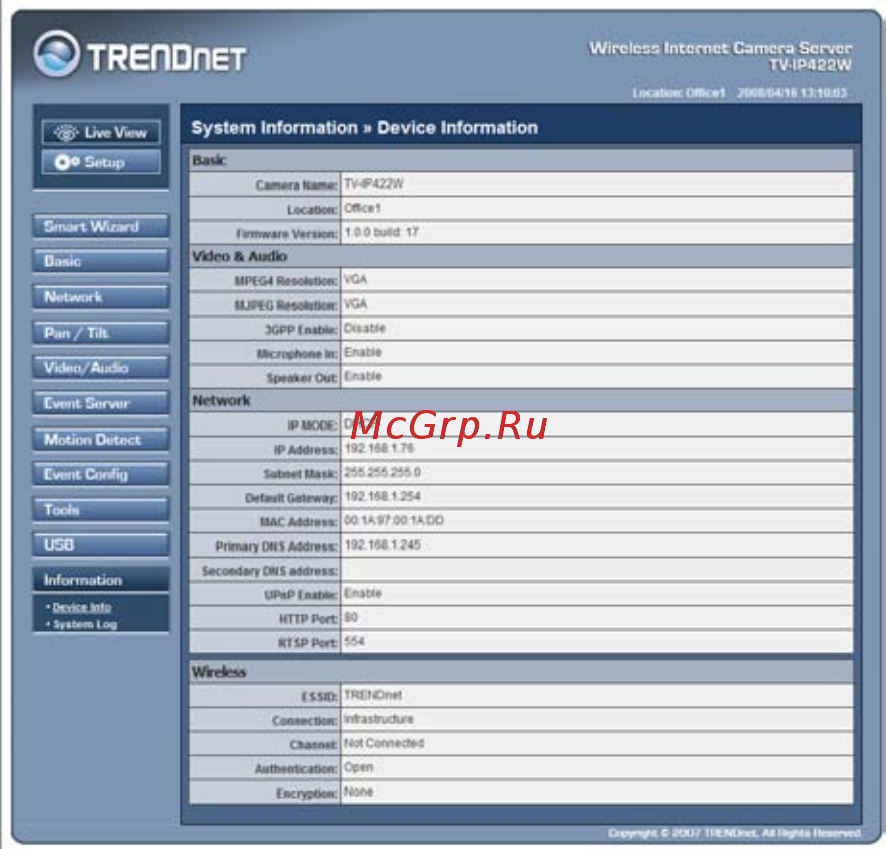

 Device Info

Display the Basic, Video & Audio, Network, and Wireless settings of

the camera.

 System Log

The Logs table displays the events log recorded by the system.
