- 60 -

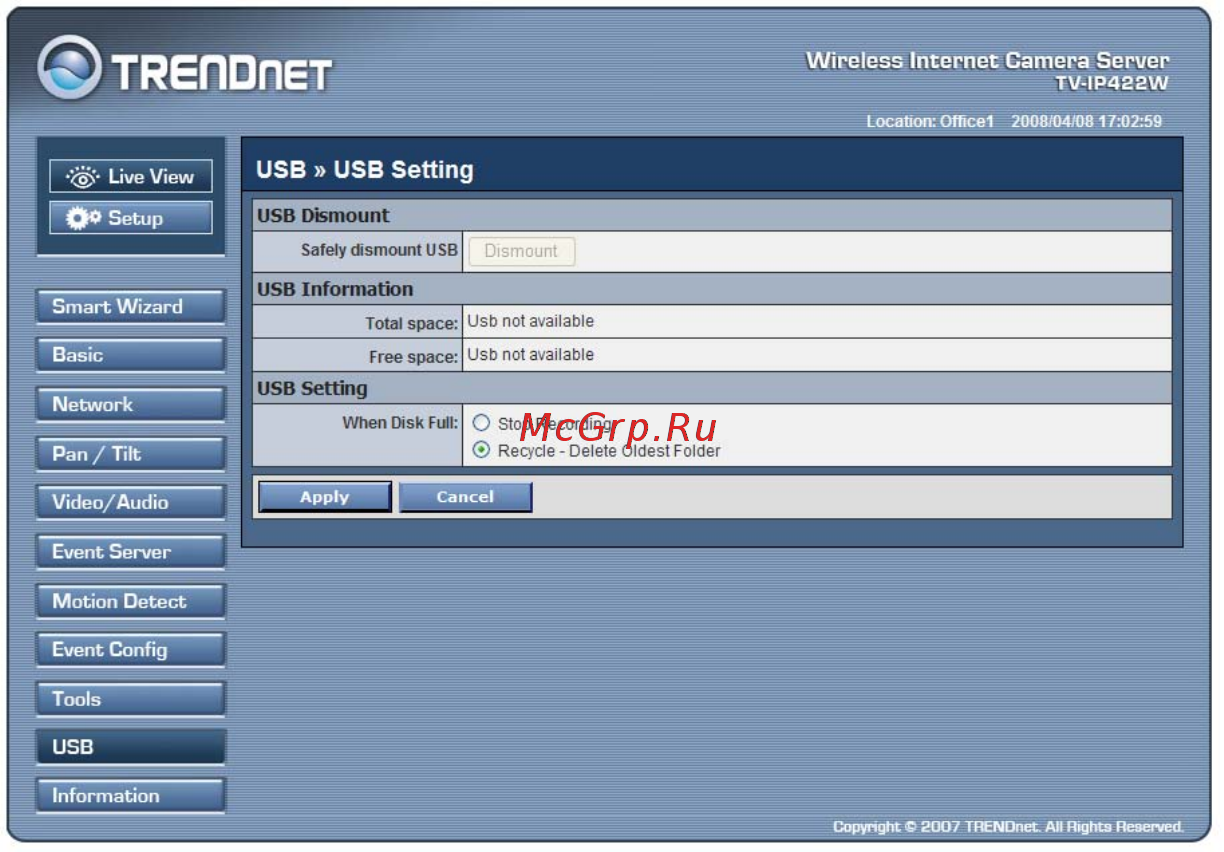

4.11 USB

The USB menu provides the information and controls of the connected

USB device.

 USB Dismount

To safely remove the connected USB device, you can press the

Unmount button for four seconds on the camera or click Dismount

from this item.

 USB Information

Display the Total space and Free space of the USB device.

 USB Setting

- When Disk Full: Select Stop Recording or Recycle – Delete

Oldest Folder of File when the storage space on the USB device is

full.
