Trendnet TV-IP422W [68/111] Using installation

- 67 -

7. After installing the IPSetup utility, the application is automatically

installed to your computer, and creates a folder in “ Start

\Program\TRENDnet\SecurView”.

5.2 USING INSTALLATION

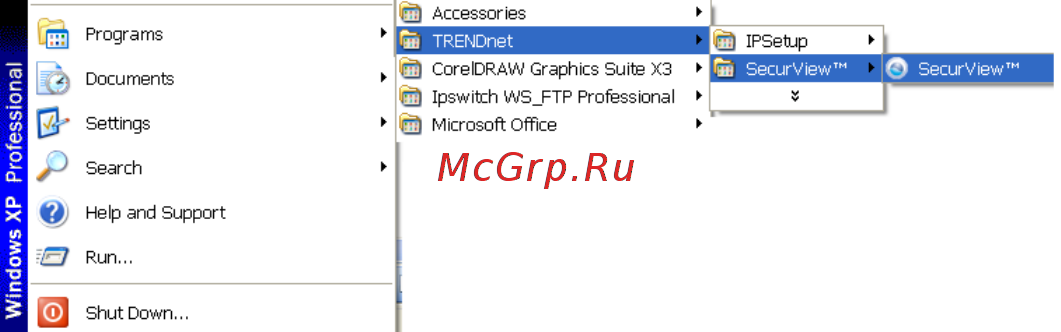

1. To launch the program, click Start > Program > TRENDnet >

SecurView, and then click SecruView™. The main screen will appear

as below.
