- 15 -

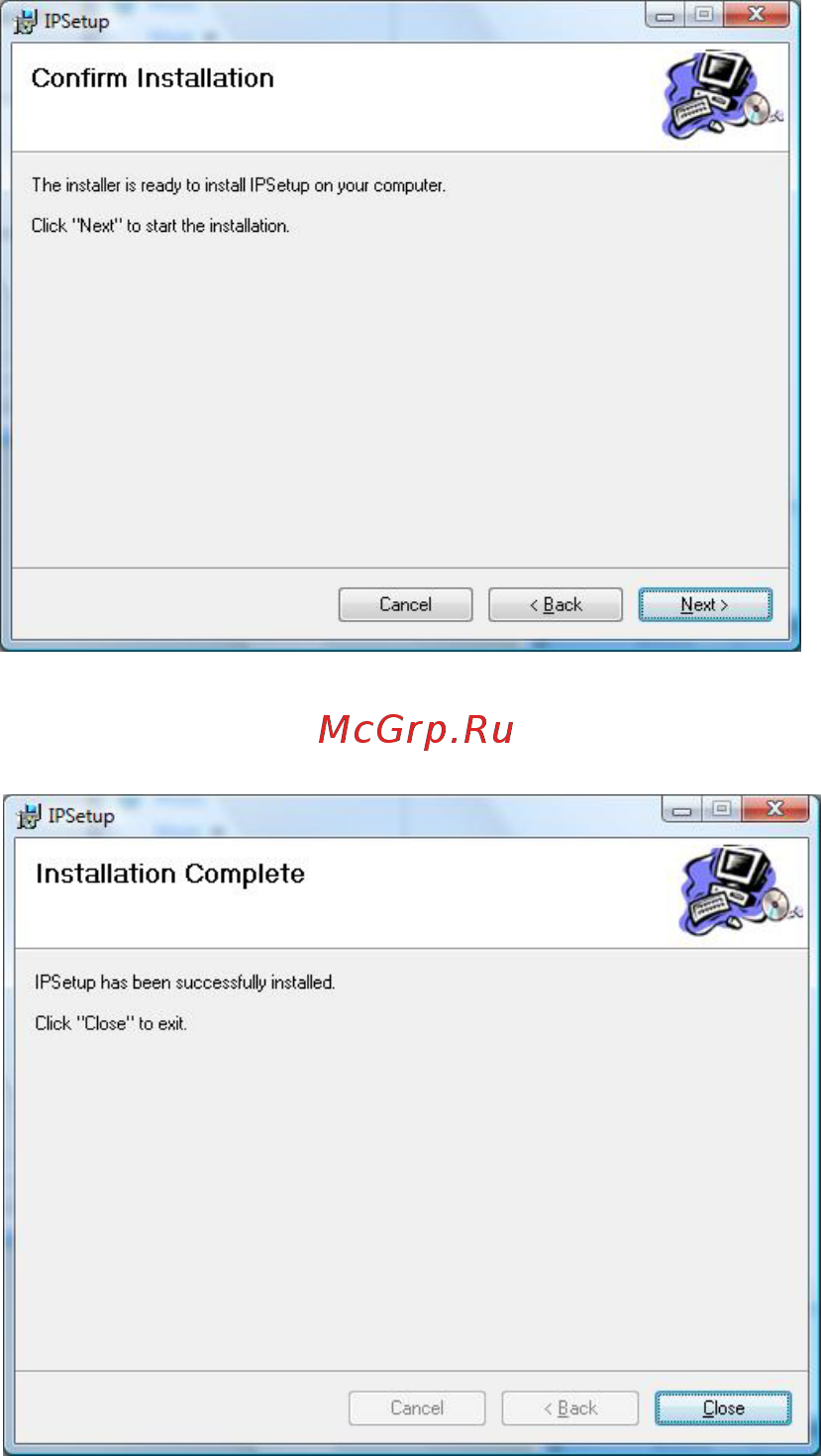

4. Click “Next” to confirm the IPSetup software to be installed to the

computer.

5. When the Installation Complete window appears, click “Finish”.
