- 26 -

changed to new password, please keep a record. You will need the new

password to view or configure the camera later on.

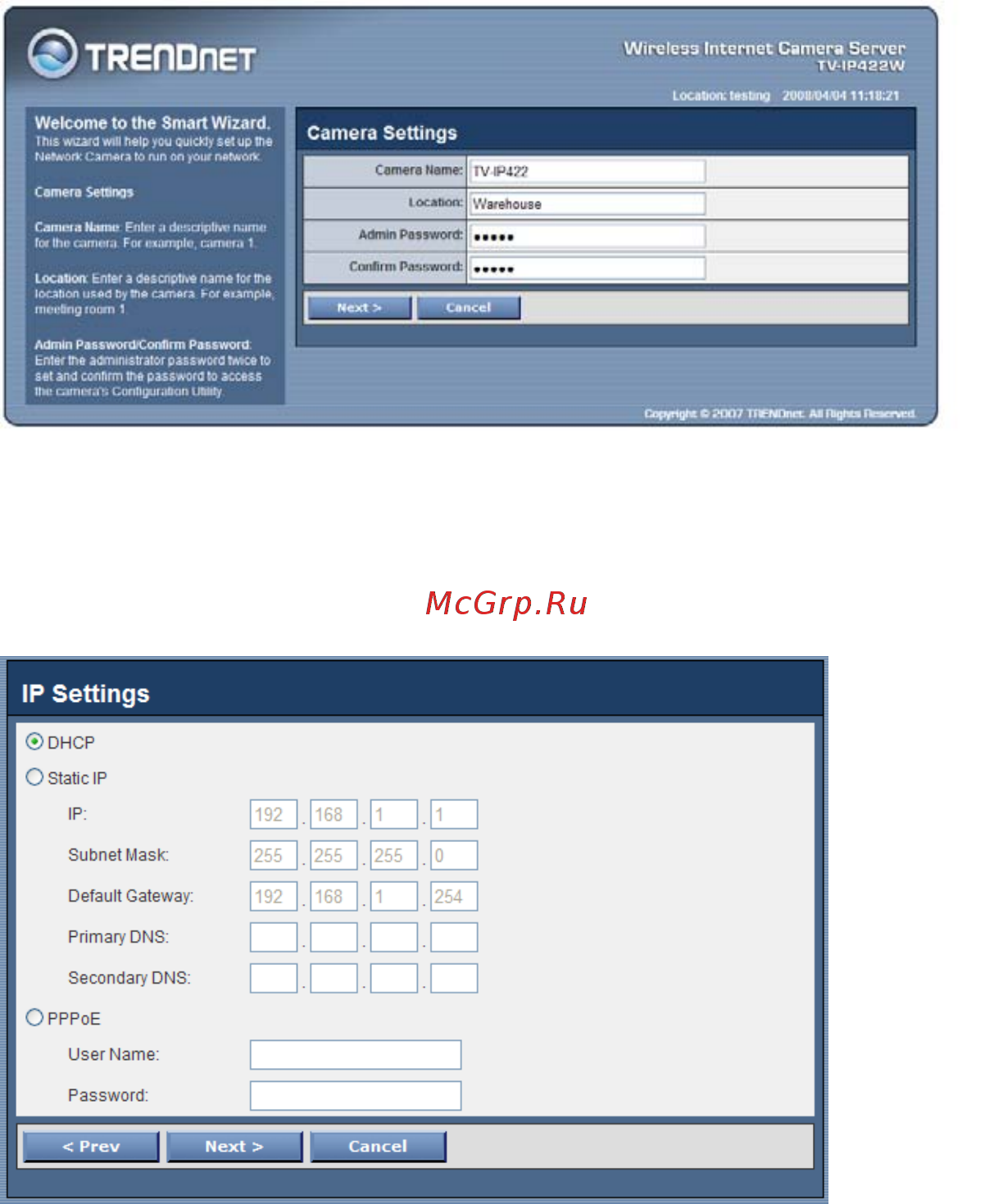

Step 2. IP Settings

Choose DHCP, Static IP or PPPoE
