- 58 -

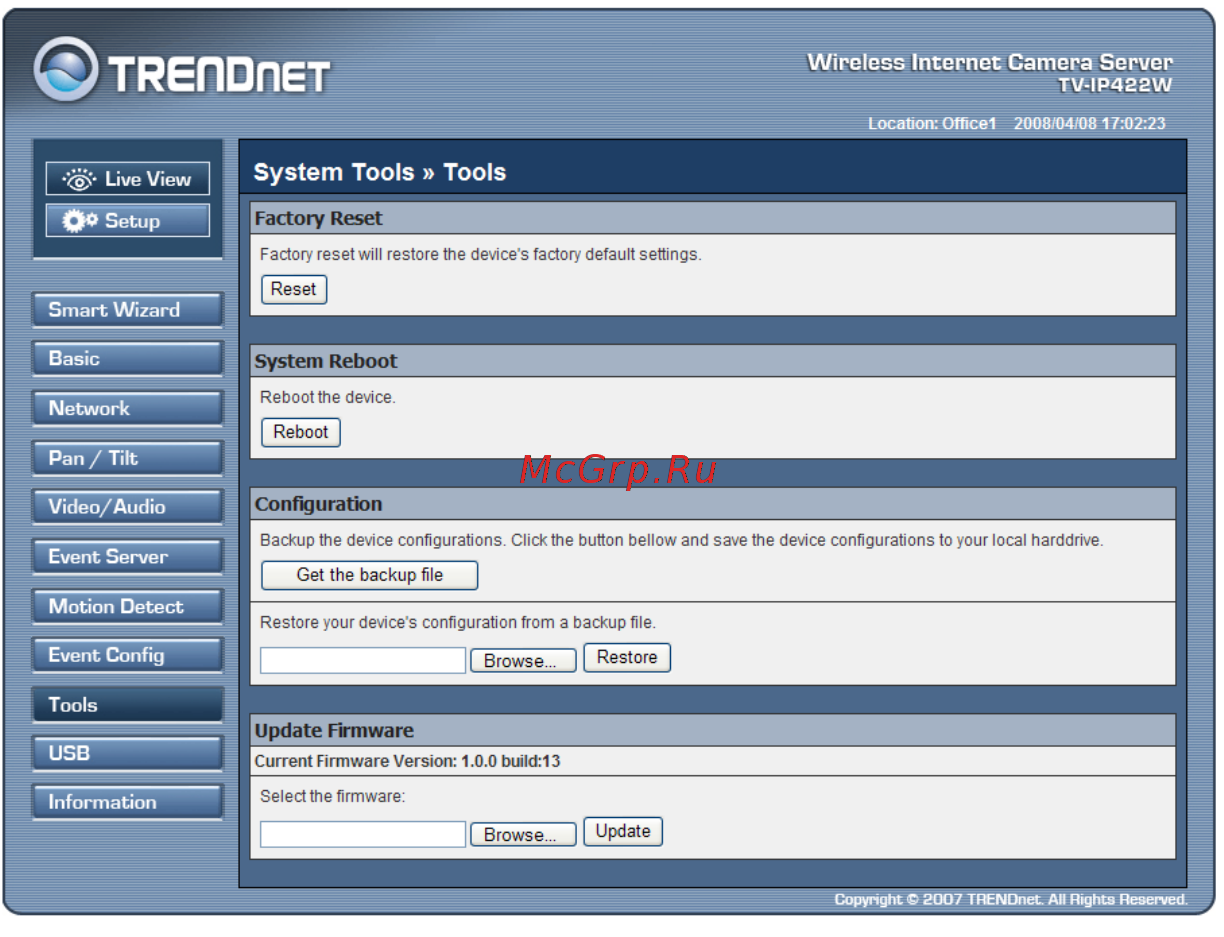

4.10 Tools

The Tools menu provides the commands that allow you to restart or reset

the camera. You can also backup and restore your configuration, and

upgrade the firmware for the camera.

 Factory Reset

Click Reset to restore all factory default settings for the camera.

 System Reboot

Click Reboot to restart the camera just like turning the device off and

on. The camera configuration will be retained after rebooting.

 Configuration
