- 63 -

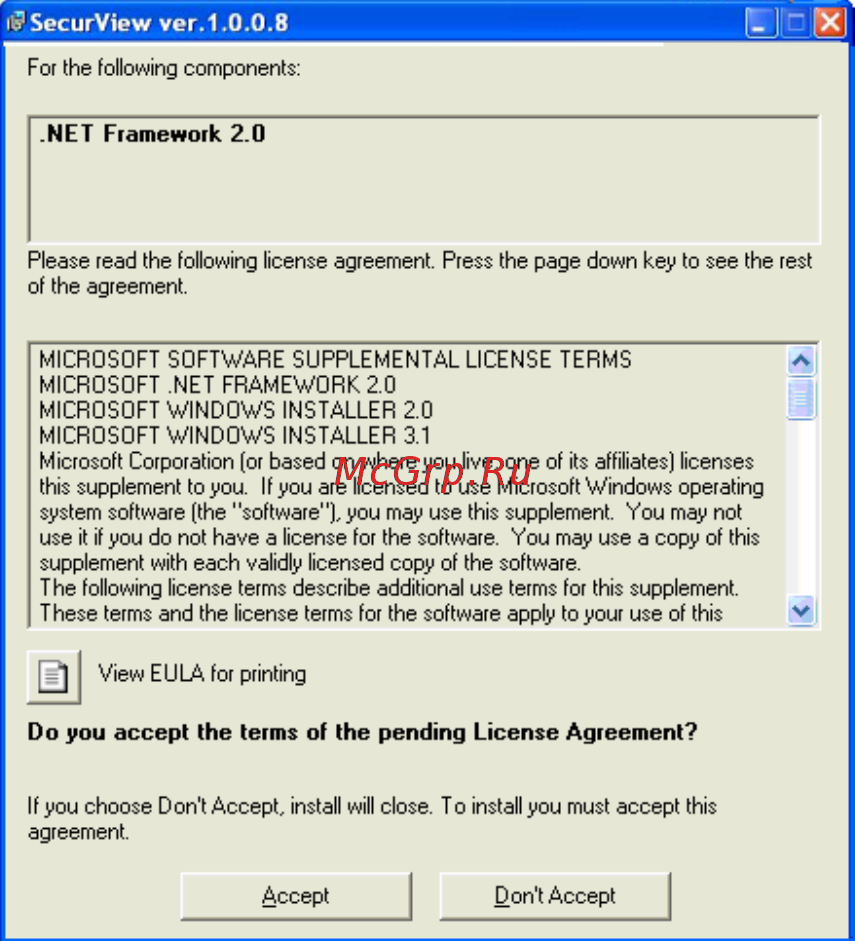

NOTE To use SecurView™, you must have Microsoft .NET Framework 2.0

installed in the computer. The setup wizard will detect it and, if

the program is not installed yet, ask you to install it during the

process of installing SecurView™.

3. Then SecurView Setup Wizard will appear. Click “Next” when the

Welcome to the SecurView Setup Wizard appears
