- 69 -

- SETTING: Click to enter the Setting screen of SecurView™. Click

again to return to the main screen of SecurView™.

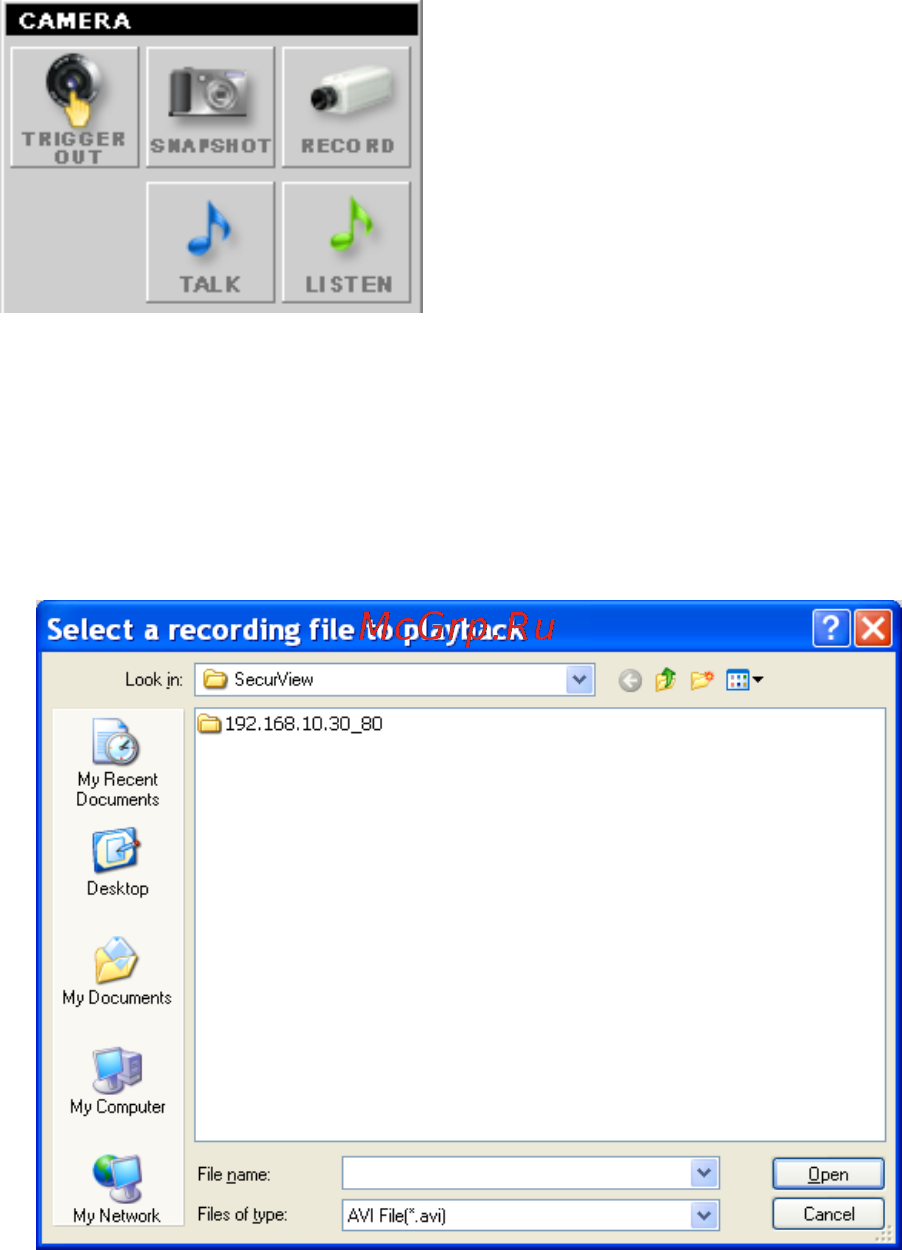

- PLAY: Click to play the recorded video file using the media player

on the computer (for example, Windows Media Player by default).

- LOCK: Click to lock the camera controls. Click again to resume

controls for the camera. If you have set ID and Password in

SETTING > Account, you will be asked to enter the required

information to unlock.
