WARNING: never introduce hot food or drinks.
WARNING: do not clean the areas around the counter when
the door is open.
Do not wash the counter using direct
high-pressure water sprays.
WARNING: do not use chlorine-based (bleach, muriatic acid,
etc.) or toxic products for cleaning operations or near the
refrigerated counters.
The cleaning and maintenance of the refrigerating system and
the compressor area require the intervention of an authorized
skilled technician and cannot be carried out by unspecialized
staff.
For maintenance operations or in case of malfunctioning,
always disconnect the counter. Always refer to an authorized
center for TECHNICAL SERVICE and original spare parts.
Failure to do this could impair the safety of the products.
TECHNICAL SPECIFICATIONS
The technical specifications are shown in the enclosed sheet.

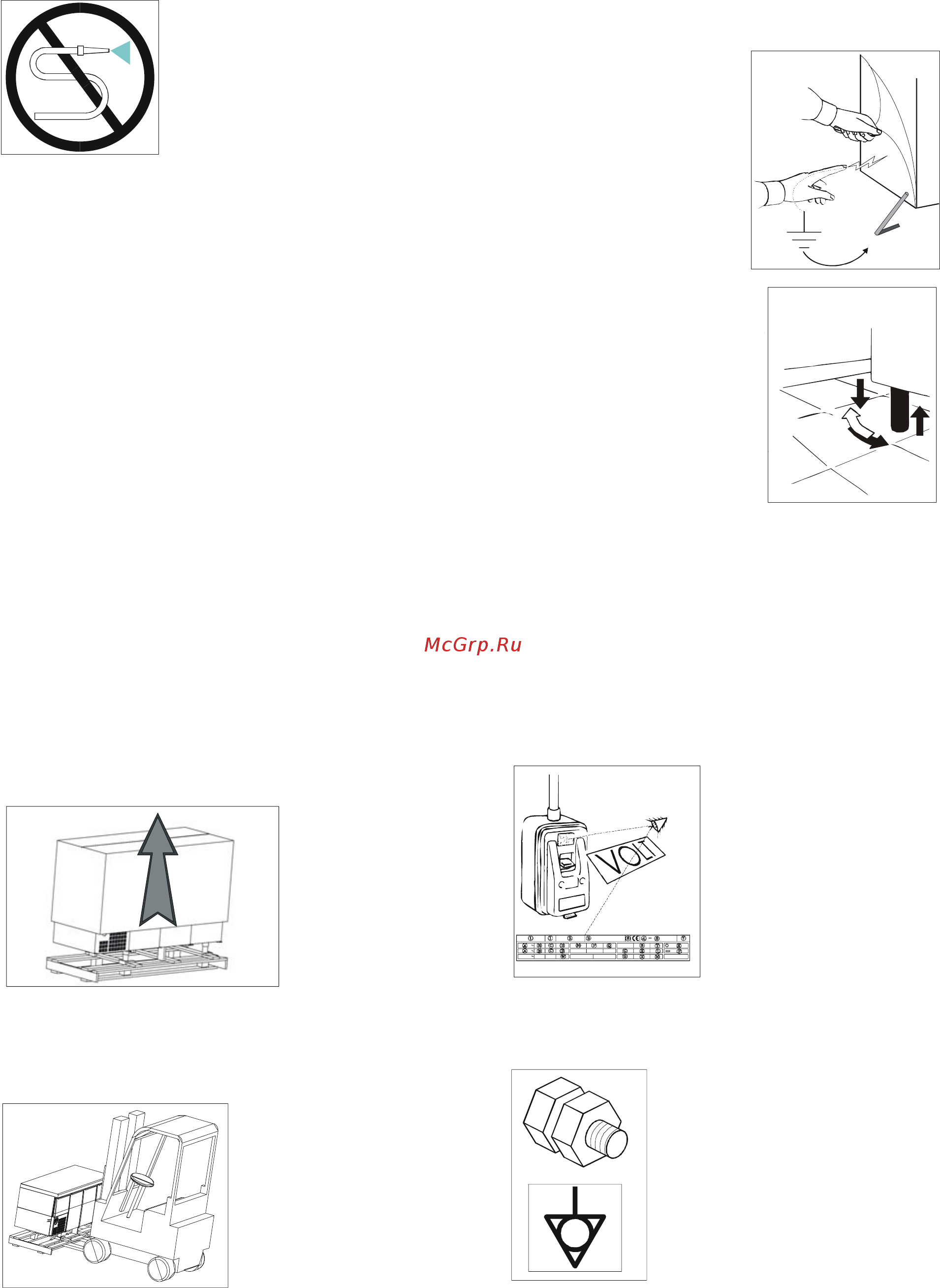

INSTALLATION
The products are always packed with cardboard and shipped
on pallets.
In case of damage or missing parts upon delivery, follow the
instructions given in the chapter ‘GENERAL INFORMATION
UPON DELIVERY’.
WARNING: installation operations must be carried out by
skilled staff.
Remove the packing with care in order not to dent the counter
surfaces.
WARNING: keep the packing components (plastic bags,
polystyrene foam, nails, etc) away from children since they can
be very dangerous
Use a fork truck to lift the counter and move it to the
installation site, paying
attention not to unbalance
the load.
WARNING: do not push or drag the counter during installation
or in the future, in order to prevent it from turning over or
damaging its parts
WARNING: do not place the counter near heat sources or in
rooms with high temperatures. This could cause efficiency loss
and excessive stress of the refrigerating system
Remove the protective film.
This operation may cause
unpleasant electric shocks
that, however, are not
dangerous (static electricity).
To eliminate or considerably
reduce this inconvenience,
always keep one hand in
contact with the counter or
ground the external packing.
It is now possible to level the
counter by adjusting its feet.
During leveling, slightly tilt the
counter towards its back (24) to
allow for a better door closing
Clean with lukewarm water and mild detergent (as described in
the chapter ‘CLEANING’) and assemble the accessories
available
The counter is provided with a SHUCO electric plug.
Check that the plug complies with domestic and EN60320,
en60335-1 regulations. If not, replace it with a compliant one.
WARNING: this operation must be carried out by skilled staff
Check the correspondence of the mains voltage with the one
indicated in the identification plate of the counter.
WARNING: check that the
mains outlet is provided with
grounding. If not, arrange it
Insert the plug into the outlet.
The installation is now completed.
The counter must be incorporated into an equipotential system
that must be checked for efficiency
according to the regulations in force.
The connection must be carried out by
means of a screw marked as
‘Equipotential’ located in the
compressor area.
