9 Piping work and
refrigerant charge
110
TCGB0068 rev.1 - 08/2012

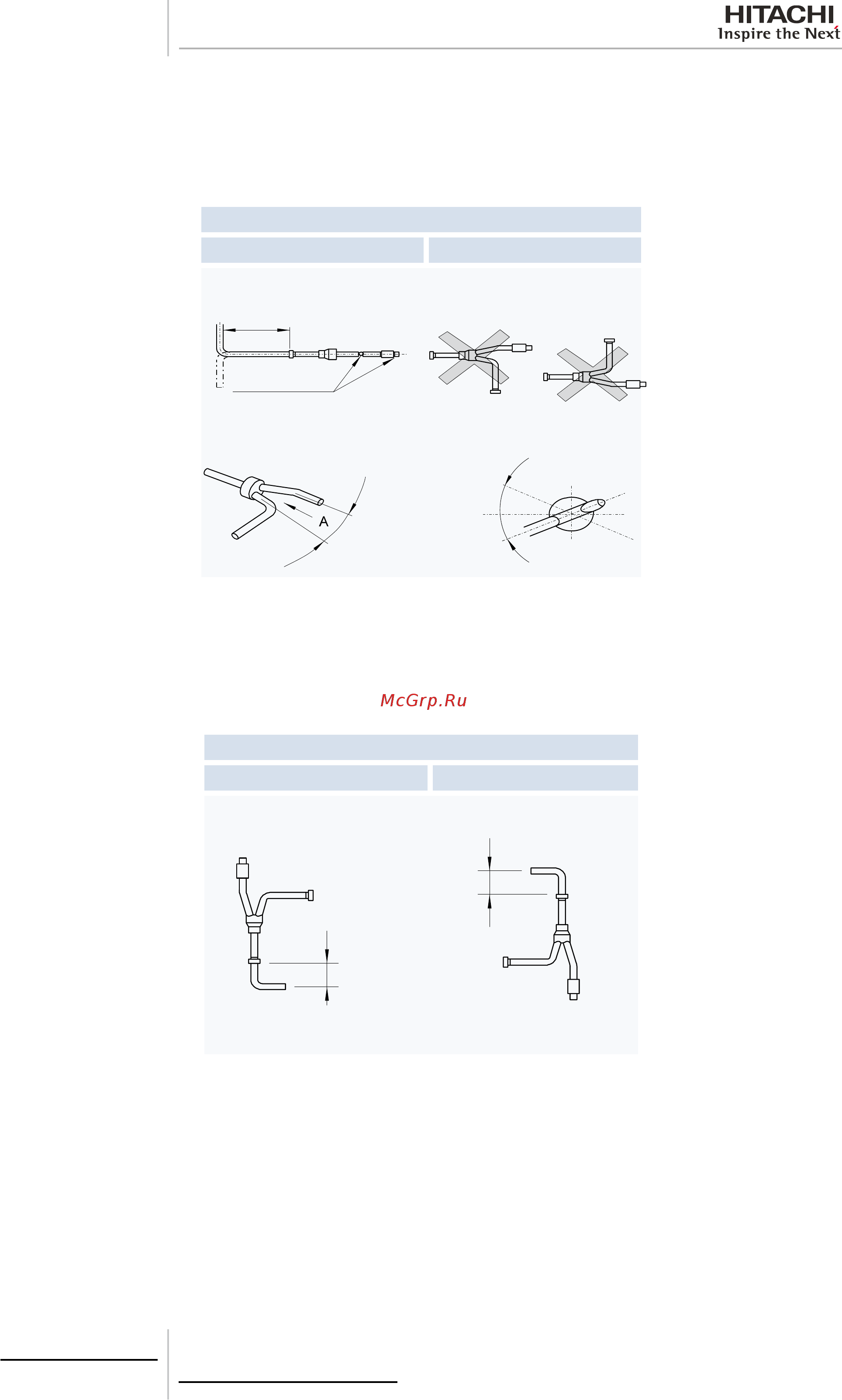

Installation position
• Horizontal installation
Locate the branch pipes on the same horizontal plane. (Inclination within 30°)
Make the straight length a minimum of 0.5m after the vertical bend.
Horizontal
Right Wrong
Maximum incli-
nation of ±30º
Straight length
min 0.5m
Downward
Upward
Upward
Downward
Maximum incli-
nation of ±30º
• Vertical installation
Straight length of the pipe connection on the outdoor unit side is made as follows:
- The collective pipe connection part is installed upward, the straight length must be min. 0.5m.
- The collective pipe connection part is installed downward, the straight length must be min.0.3m.
Vertical
Correct Correct
Upward
Upward Branch
Upward
M i n i m u m
straight length
of 0.3 m
Downward
Branch
Downward
Downward
M i n i m u m
straight length
of 0.5 m
