4 Capacities and
selection data
86
TCGB0068 rev.1 - 08/2012
4.4 Correction factors
4.4.1 Piping length correction factor
The correction factor is based on the equivalent piping length in meters (EL) and the height between outdoor and indoor
units in meters (H).

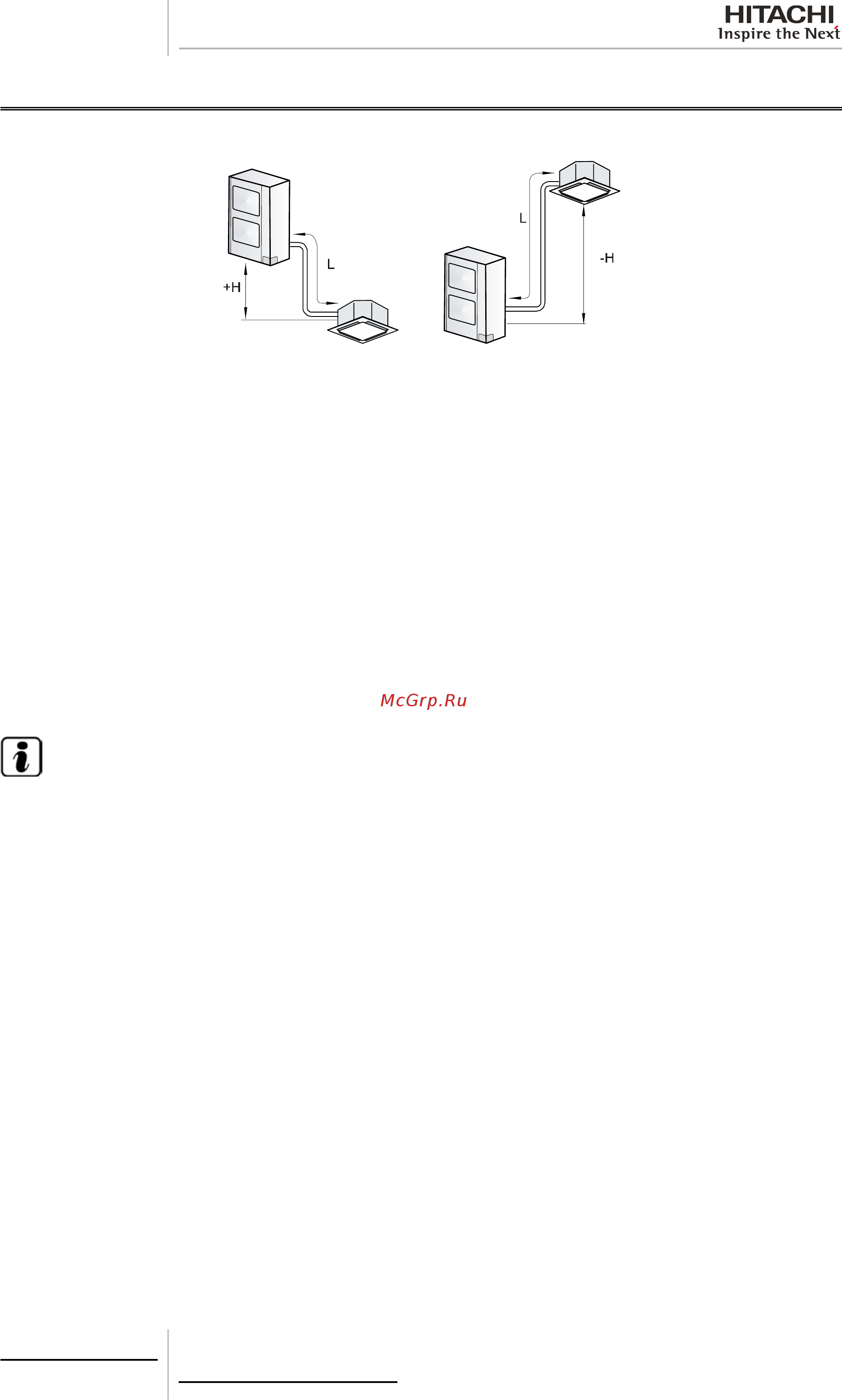

H:
Height between outdoor unit and indoor unit (m).
• H>0: Position of outdoor unit is higher than position of indoor unit (m).
• H<0: Position of outdoor unit is lower than position of indoor unit (m).
L:
Actual one-way piping length between outdoor unit and indoor unit (m).
EL:
Equivalent one-way piping length between indoor unit and indoor unit (m).
• One 90º elbow is 0.5 m.
• One 180º bend is 1.5 m.
• One Multi-kit is 0.5 m.
N O T E
In order to ensure correct unit selection, consider the farthest indoor unit.
