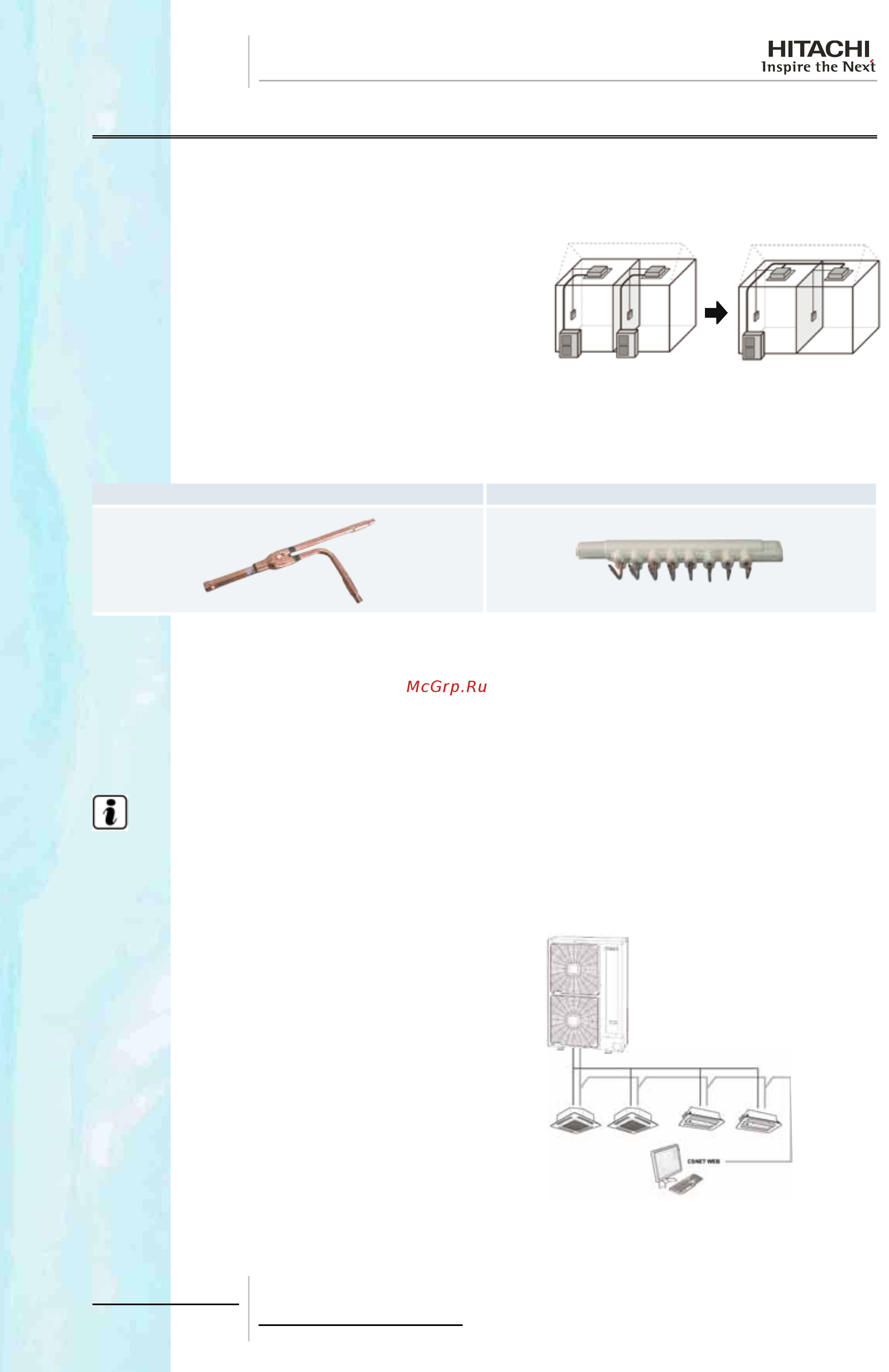

2 Features and benets
16
TCGB0068 rev.1 - 08/2012
2.2 Installation benets
2.2.1 Easy and exible unit installation
Reduced installation space by individual operation
• For Indoor units installed in different rooms, the benets are:
- Outdoor installation space reduced to half.
- Decrease piping installation work and cost.
- Decrease wiring and power equipment.
A. Model without individual operation function.
B. FS(V)N(Y)2E model.
A B
Different mounting accessories available
HITACHI provides all of the accessories required to connect the pipes (distributors and multikits). These accessories make
the installation process more exible and straightforward.
E-SN2 multikit MH-AN distributors
2.2.2 Easy and exible electrical installation
Interconnection of units via H-LINK II
The units interconnect via a bus called H-LINK II, consisting of 2 non-polarity cables wich accept lengths of up to 1,000m.
Accessories are available if required to increase this length up to 5,000m (PSC-5HR).
N O T E
The control system, the indoor units and the remote control must be compatible with the H-LINK II bus.
Up to 160 units connected in a single H-LINK II bus line
It is possible to connect up to 160 indoor units from the SYSTEM
FREE range in a single H-LINK II bus line. To expand the insta-
llation or increase the bus lines available, simply add a new line.
All of the units are managed as one through the control systems
installed.
