10 Electrical wiring
122
TCGB0068 rev.1 - 08/2012
10.2 Setting of DIP switches and RSW switches
C A U T I O N
Before changing the settings of the DIP switches, the voltage supply should be disconnected. Otherwise, the new
settings will not be valid. Only the DIP DSW1 and DSW2 and DSW4 switches can be set while the voltage supply
is connected.
N O T E
• The mark “■” indicates the position of dips switches.
• No mark “■” indicates pin position is not affecting.
• The gures show the settings before shipment or after selection.
• For detailed information, please refer to the SMXX0068.

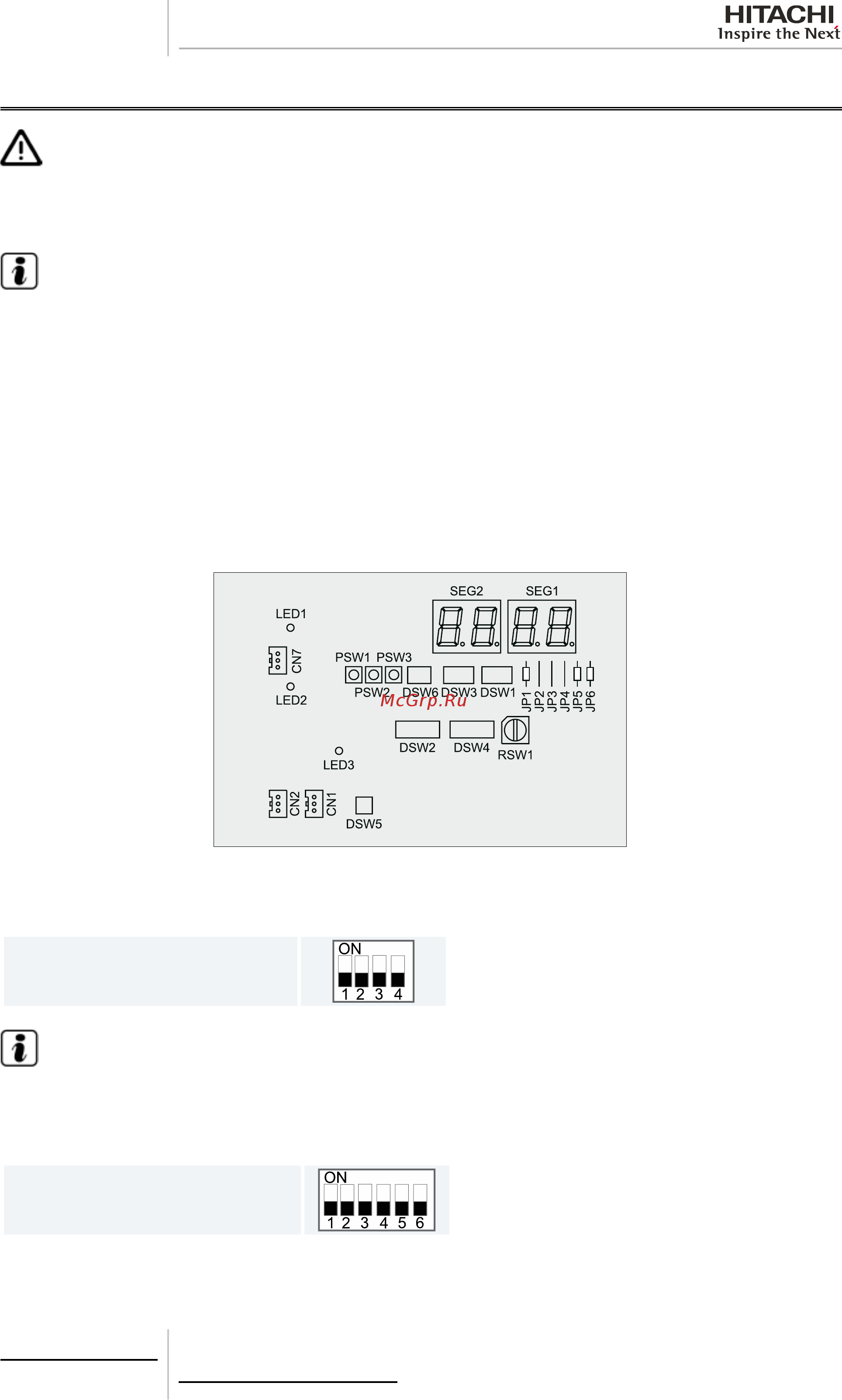

Number and position of DIP Switches for Outdoor Units
The PCB in the outdoor units operates with 6 types of DIP switches, 6 cut-off switches and 3 types of push-switches.
Position of DIP switches
RAS-(4-6)FS(V)N(Y)2E
DSW1: For Test Run
Setting before shipment
N O T E
With the DSW4 switch, the unit starts or stops after 10 to 20 seconds of the switch being activated.
DSW2: Optional function setting
Setting before shipment
(RAS-(4-6)FS(V)N(Y)2E)
