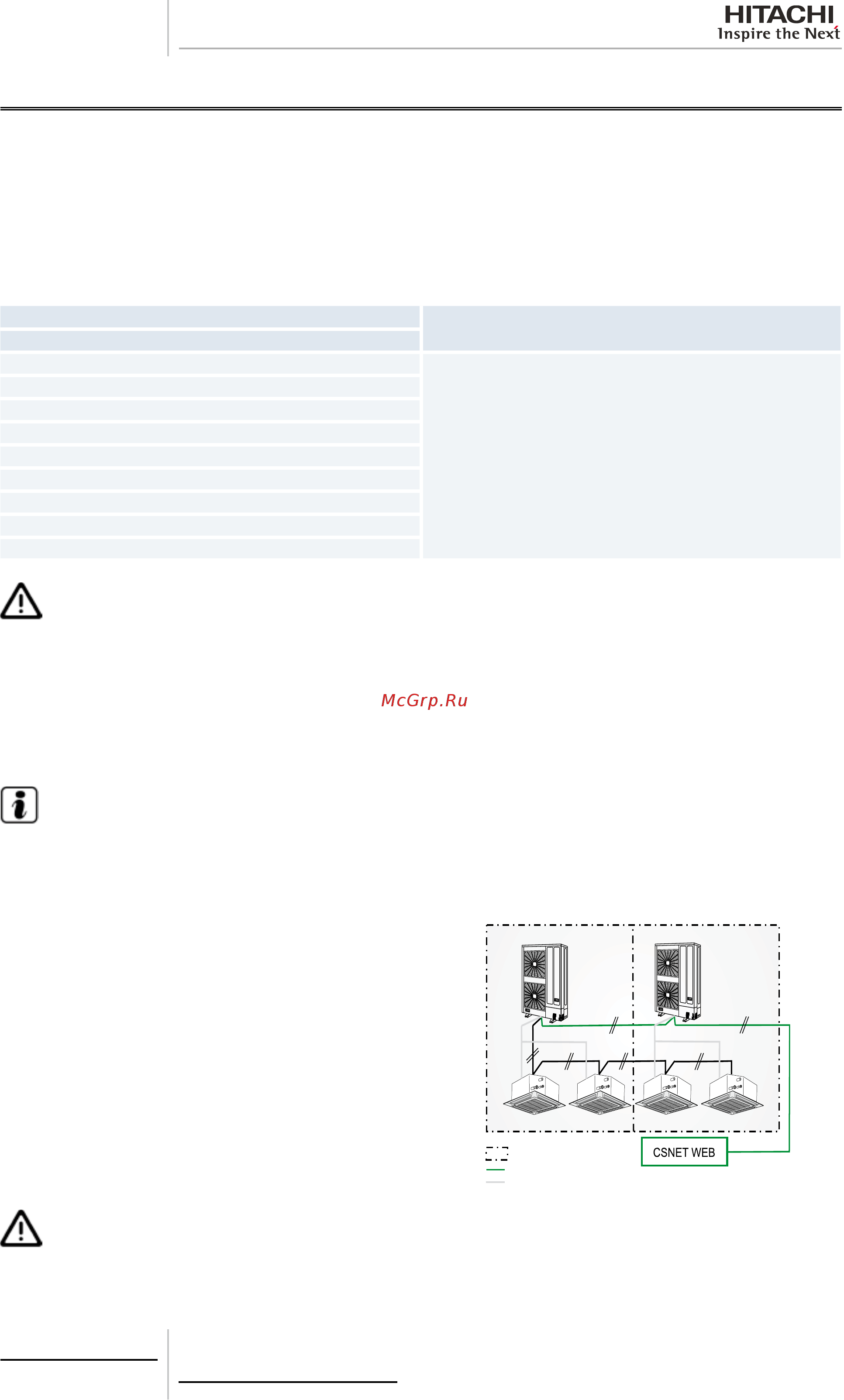

10 Electrical wiring
126
TCGB0068 rev.1 - 08/2012
10.4 H-LINK II system
The H-LINK II is the wiring connection system between units.
The H-LINK II wiring system only needs:
• Two transmission wires connecting each indoor and outdoor unit for a total of 64 refrigerant cycles.
• Connection wiring for all indoor and outdoor units in series.
10.4.1 Application
The H-LINK II system can be applied to the following models:
Indoor Unit
Outdoor Unit
System Free
RCI
RAS-(4-6)FS(V)N(Y)2E
RCIM
RCD
RPI
RPIM
RPK
RPF
RPFI
RPC
C A U T I O N
The H-LINK II system cannot be applied to the models with the old cycle, nor to units with an old transmission.
10.4.2 Features
• The total wiring length is considerably reduced compared to traditional connections.
• Only one connection is required for the wiring between the indoor and outdoor units.
• The wiring connection of the complementary central control devices is easy.
N O T E
CSNET WEB is centralized control system which allows the installation to be controlled remotely. It can be con-
nected at any point of the local corporate network, or even via the Internet.
10.4.3 Specications
• Transmission cable: 2-wire.
• Polarity of transmission cable: non-polar wire.
• Maximum number of indoor units that can be connected: 4
units per cycle and 160 units per H-LINK II system.
• Maximum wiring length: total 1000 m (including CSNET WEB).
• It is possible to increase the maximum wiring length up to
5000 m by using up to four PSC-5HR units.
• Recommended cable: shielded twisted pair cable, over
0.75 mm
2
(Equivalent to KPEV-S).
• Voltage: 5 V DC.
A refrigerant cycle
Transmission cables
Refrigerant piping
Outdoor unit
Indoor units
C A U T I O N
For the H-LINK II system must use twisted shielded pair cable or shielded pair cable.
