10 Electrical wiring
124
TCGB0068 rev.1 - 08/2012
10.3 Common wiring
10.3.1 Electrical wiring between outdoor and indoor unit
Connect the electrical wires between the indoor unit and the outdoor unit as show in the gure.
• When installing the electrical wiring, follow local codes and regulations.
• The refrigerant piping and the control wiring are connected to the units in the same refrigerant cycle.
• Use twist pair wire (more than 0.75 mm
2
) for operation wiring between the outdoor unit and indoor unit, and operation
wiring between indoor unit and indoor unit.
• Use a 2-core wire for the operating line (do not use wire with more than 3 cores).
• Use shielded wires for intermediate wiring to protect the units from noise interference at lengths of less than 300 m.
The size must comply with local code.
• Open a hole near the connection hole of power source wiring when multiple outdoor units are connected from a single
power source line.
• The recommended circuit-breaker sizes are shown in the table of electrical data and recommended wiring and breaker
sizes / 1 O.U.
• In the case that a conduit tube for eld-wiring is not used, x rubber bushes with adhesive on the panel.
• All eld wiring and equipment must comply with local and international codes.
• H-LINK twist pair shielded cable must be grounded in the outdoor unit side.
N O T E
• Take care with the connection of the operating line. Incorrect connection may cause a failure of the PCB.

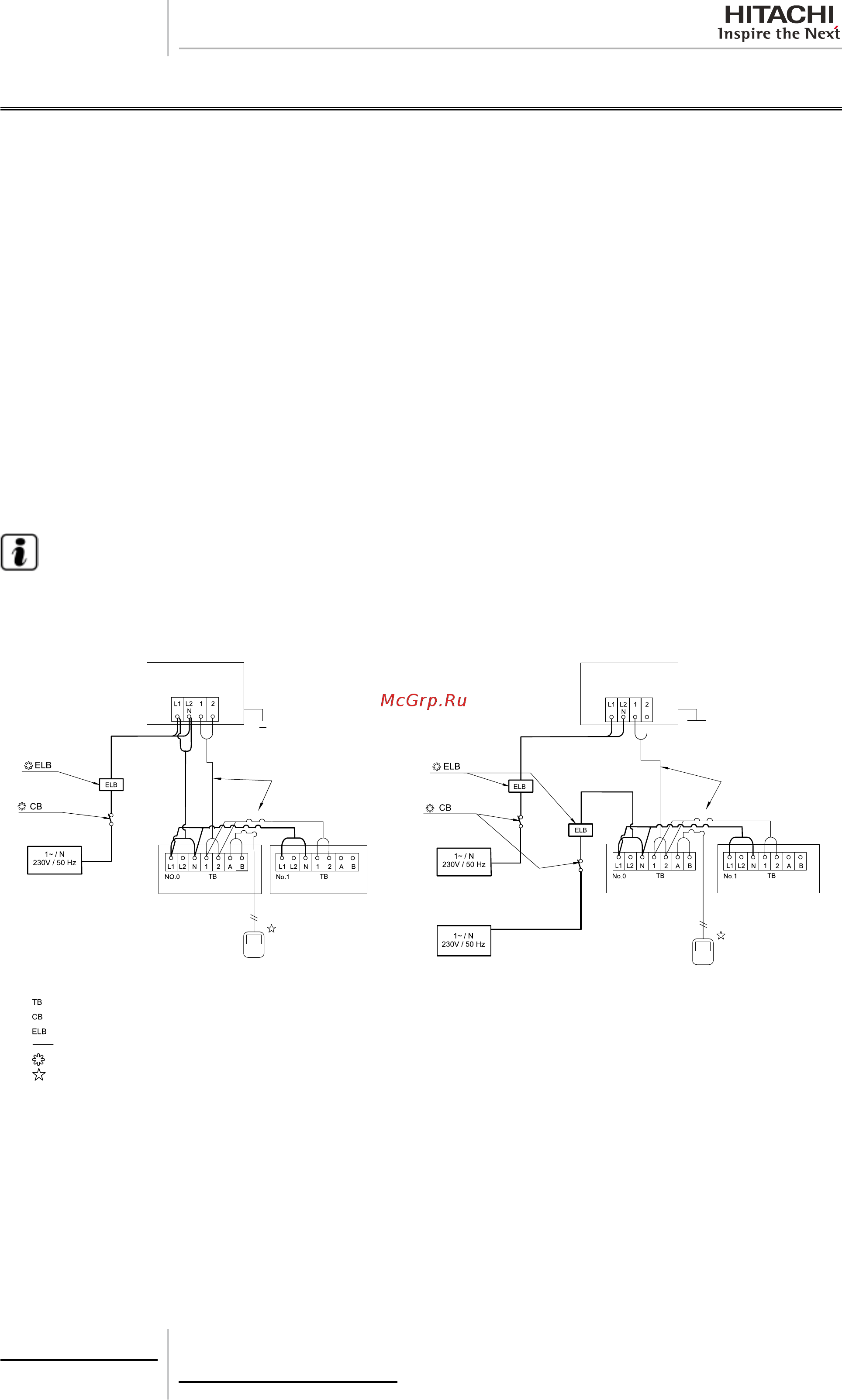

Outdoor unit of
system no. 0
Outdoor unit of
system no. 0
Operating line (twisted shielded
pair cable or shielded pair cable)
DC5V (non-pole transmission,
H-LINK system)
Remote
control
switch
Operating line (twisted shiel-
ded pair cable or shielded pair
cable)
DC5V (non-pole transmission,
H-Link system).
Remote
control
switch
Indoor unit Indoor unit
Indoor unit
Indoor unit
Terminal board
Circuit breaker
Earth leakage breaker
Field wiring
Field-supplied
Optional accessory
Power source from the outdoor
unit to the indoor unit
Independent power source of outdoor
unit and indoor unit
