2 Features and benets
22
TCGB0068 rev.1 - 08/2012

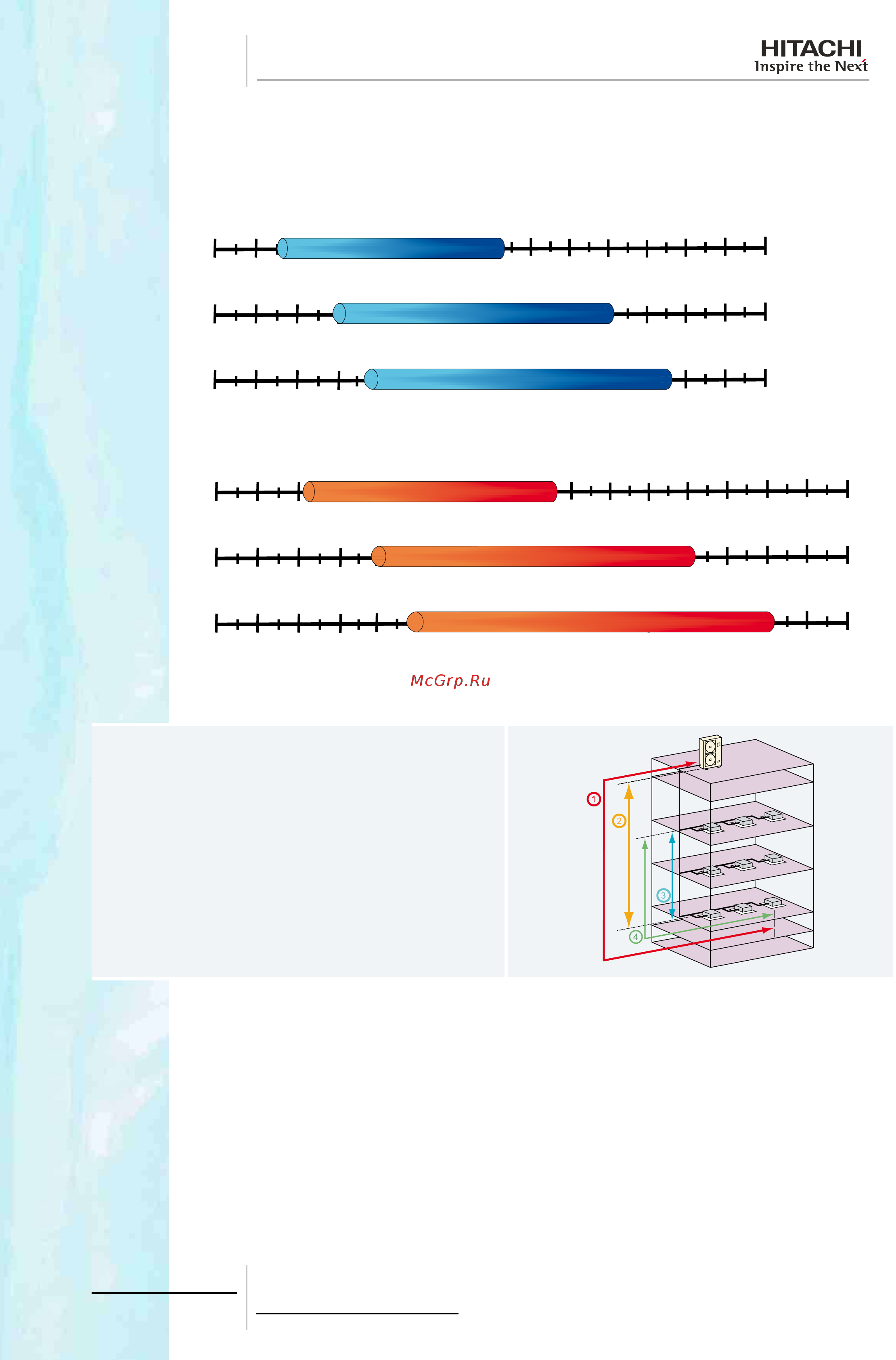

2.4.2 Wide capacity range
The control frequency system allows a wide capacity application range as shown below:
• Cooling capacity range at conditions: Indoor air inlet: 27/19 ºC (DB/WB); Outdoor air inlet: 35 ºC DB
RAS-4FS(V)N(Y)2E
6 kW 8 kW 10 kW 12 kW 14 kW 16 kW
18 kW
4 kW
RAS-5FS(V)N(Y)2E
6 kW 8 kW 10 kW 12 kW 14 kW 16 kW
18 kW
4 kW
RAS-6FS(V)N(Y)2E
6 kW 8 kW 10 kW 12 kW 14 kW 16 kW
18 kW
4 kW
• Heating capacity range at conditions: Indoor air inlet: 20 ºC DB; Outdoor air inlet: 7/6 ºC (DB/WB)
RAS-4FS(V)N(Y)2E
6 kW 8 kW 10 kW 12 kW 14 kW 16 kW
18 kW
20 kW
4 kW
RAS-5FS(V)N(Y)2E
6 kW 8 kW 10 kW 12 kW 14 kW 16 kW
18 kW
20 kW
4 kW
RAS-6FS(V)N(Y)2E
6 kW 8 kW 10 kW 12 kW 14 kW 16 kW
18 kW
20 kW
4 kW
2.4.3 Increased maximum piping length
The maximum total piping length is 125m for 4HP and
135m for 5~6HP;
① Actual Maximum piping length is 75m.
② Height difference between indoor and outdoor units is
30m.
③ Height difference between indoor units is 15m.
④ Piping length from the first multi-kit to the farthest
indoor unit is 40m.
