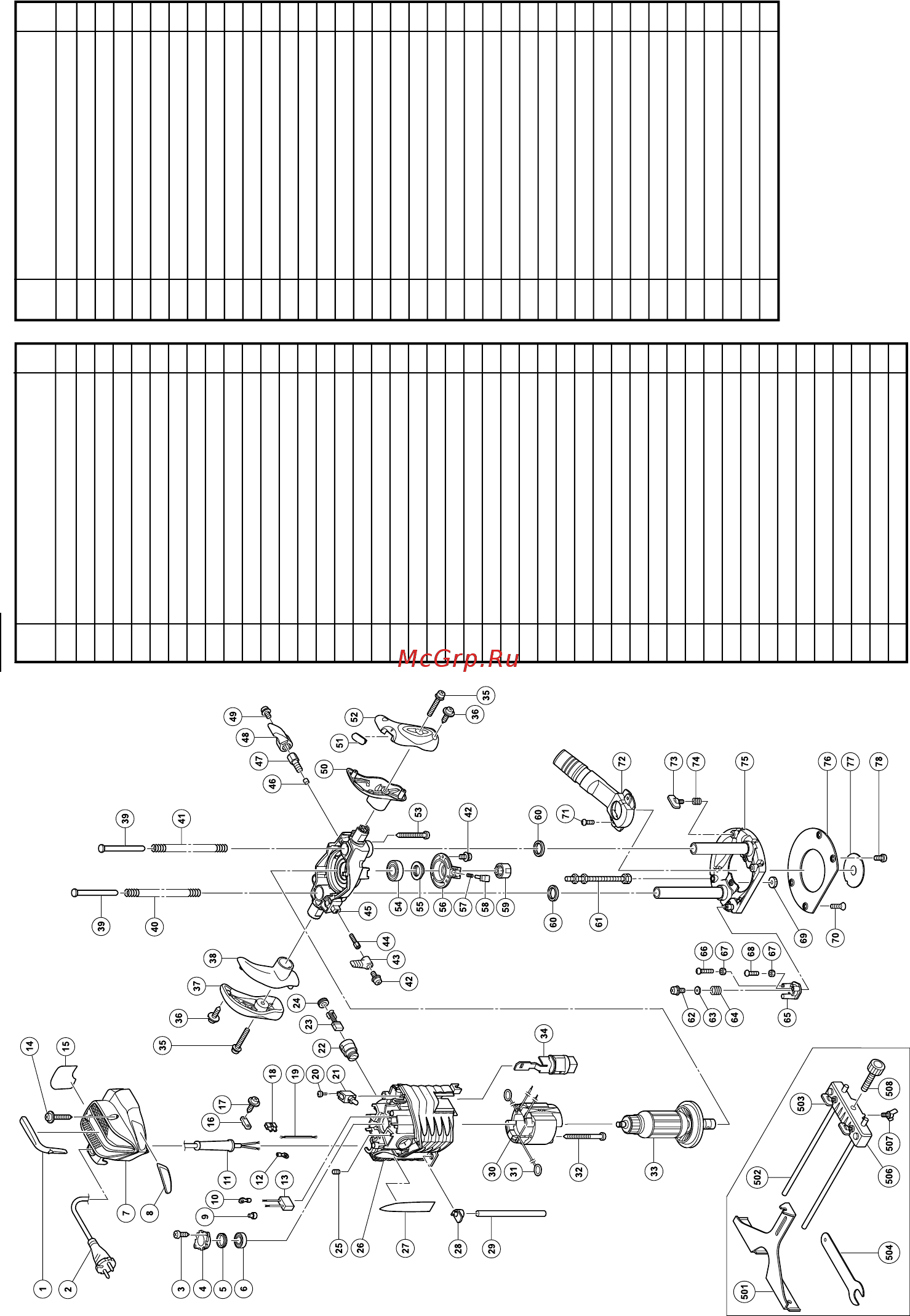

M8SA2

Item

Part Name

Q’TY

No.

1 HITACHI LABEL (B) 1

2 CORD 1

3 TAPPING SCREW D4×12 2

4 BEARING BUSHING 1

5 RUBBER RING 1

6 BALL BEARING 608VVC2 1

7 HEAD COVER 1

8 HITACHI LABEL (A) 1

9 CONNECTOR 50092 1

10 TERMINAL 1

11 CORD ARMOR 1

12 TERMINAL 1

13 NOISE SUPPRESSOR 1

14 TAPPING SCREW (W/FLANGE) 3

15 NAME PLATE 1

16 CORD CLIP 1

TAPPING SCREW (W/FLANGE) D4×16

18 PILLAR TERMINAL 1

19 LEAD WIRE 1

MACHINE SCREW (W/WASHER) M3.5×6

21 SWITCH 1

22 BRUSH HOLDER 2

23 CARBON BRUSH 2

24 BRUSH CAP 2

25 HEX. SOCKET SET SCREW M5×82

26 HOUSING ASS’Y 1

27 SCALE 1

28 MARKER 1

29 STOPPER POLE (A) 1

30 STATOR ASS’Y 1

31 BRUSH TERMINAL 2

32 HEX. HD. TAPPING SCREW D5×70 2

33 ARMATURE 1

34 LEVER 1

MACHINE SCREW (W/WASHERS) M6

TAPPING SCREW (W/FLANGE) D4

37 HANDLE (L) B 1

38 HANDLE (L) A 1

39 SPRING GUIDE 2

40 PLUNGER SPRING (R) 1

41 PLUNGER SPRING (L) 1

MACHINE SCREW (W/WASHERS) M4

43 LEVER (C) 1

44 LOCK SCREW M6 1

45 END BRACKET 1

46 LOCK PIECE 1

Item

Part Name

Q’TY

No.

47 LOCK SCREW M10 1

48 LEVER (A) W/O STOPPER 1

MACHINE SCREW (W/WASHERS) M6

50 HANDLE (R) A 1

51 DIAL COVER 1

52 HANDLE (R) B 1

53 TAPPING SCREW D5×50 4

54 BALL BEARING 6004TIXVV 1

55 THRUST NUT 1

56 BEARING COVER 1

57 LOCK SPRING (A) 1

58 PUSHING BUTTON 1

59 COLLET CHUCK 1

60 FELT 2

61 SCREW M8 1

MACHINE SCREW (W/WASHERS) M4

63 WASHER (B) 1

64 SPRING (A) 1

65 STOPPER BLOCK 1

66 MACHINE SCREW M5×25 1

67 NUT M5 2

68 MACHINE SCREW M5×16 1

69 KNOB NUT 2

SEAL LOCK FLAT HD. SCREW M5

71 MACHINE SCREW M5×12 2

72 DUST COLLECTION ADAPTER SET 1

73 WING BOLT M6×15 2

74 LOCK SPRING 2

75 BASE 1

76 SUB BASE 1

77 TEMPLATE GUIDE D18 1

78 MACHINE SCREW M5×62

501 STRAIGHT GUIDE 1

502 GUIDE BAR (A) 2

503 WING BOLT M6×15 2

504 WRENCH 23MM 1

506 BAR HOLDER 1

507 WING BOLT M6×10 1

508 FEED SCREW 1
