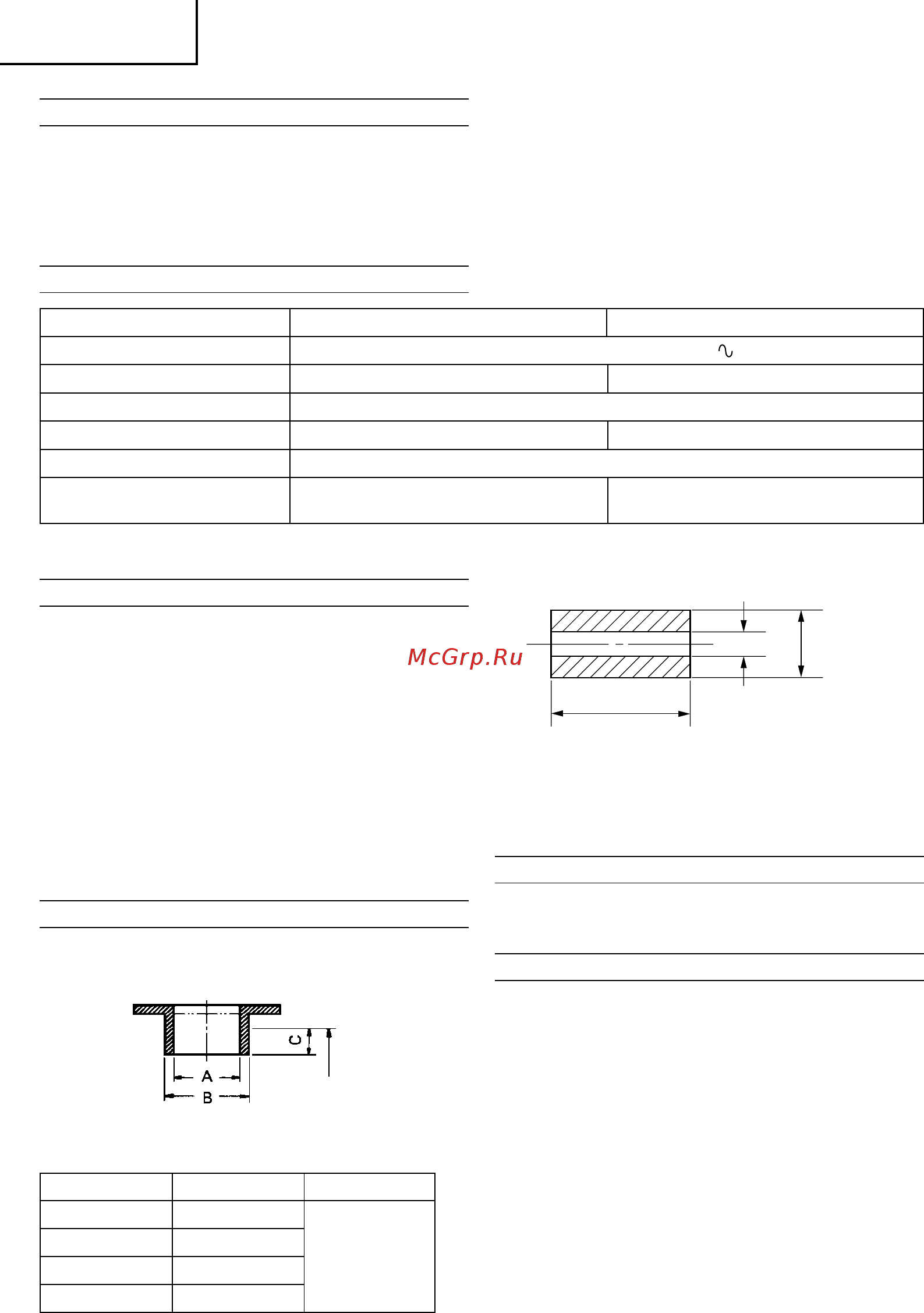

SPECIFICATIONS
*Be sure to check the nameplate on product as it is subject to change by areas.
STANDARD ACCESSORIES
(1) Straight Guide .......................................................... 1
(2) Bar Holder ................................................................. 1
Guide Bar .................................................................. 2
Feed Screw ............................................................... 1
Wing Bolt .................................................................. 1
(3) Template Guide ........................................................ 1
(4) Wrench ....................................................................... 1
(5) Wing Bolt (A) ........................................................... 4
(6) Lock Spring ............................................................... 2
(7) Dust collector set (Fig. 17) ........................................ 1
Be sure to check standard accessories on product as it is
subject to change by areas.
Standard accessories are subject to change without
notice.
OPTIONAL ACCESORIES - sold separately
(1) Template Guide
Model M8V2 M8SA2
Voltage (by areas)* (110V, 120V, 220V, 230V, 240V)
Power Input* 1150 W 900 W
Collet Chuck Capacity 8 mm or 1/4"
No-load speed 11000 – 25000 min
–1
25000 min
–1
Main Body Stroke 60 mm
Weight (without cord and
standard accessories)
3.6 kg 3.5 kg
PRECAUTIONS ON USING ROUTER
1. Single-hand operation is unstable and dangerous.
Ensure that both handles are gripped firmly during
operation.
2. The bit is very hot immediately after operation.
Avoid bare hand contact with the bit for any
reason.
Bottom of Sub
base
ABC
16.5 mm 18 mm
18.5 mm 20 mm
4.5 mm
25.5 mm 27 mm
28.5 mm 30 mm
20 mm
6
mm
8 mm
(2) Chuck Sleeve (8 × 6)
(3) Trimmer Guide (Fig. 14)
(4) Collet Chuck (8 mm)
(5) Collet Chuck (1/4”)
(6) Fine adjustment knob (Fig. 17)
Optional accessories are subject to change without notice.
APPLICATIONS
䡬 Woodworking jobs centered on grooving and
chamfering.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specified on the product
nameplate.
2. Power switch
Ensure that the power switch is in the OFF position.
If the plug is connected to a receptacle while the
power switch is in the ON position, the power tool
will start operating immediately, which could cause
a serious accident.
3. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be
kept as short as practicable.
