CP716
Air Hammer
Original Instructions
Copyright 2011, Chicago Pneumatic Tool Co. LLC
All rights reserved. Any unauthorized use or copying of the
contents or part thereof is prohibited. This applies in particular to
trademarks, model denominations, part numbers and drawings.
Use only authorized parts. Any damage or malfunction caused
by the use of unauthorized parts is not covered by Warranty or
Product Liability.
MANUFACTURER’S LIMITED WARRANTY
Limited Warranty: The “Products” of the Chicago Pneumatic Tool
Co. LLC (“CP”) are warranted to be free from defects in material and
workmanship for one year from the date of purchase. This Warranty
applies only to Products purchased new from CP or its authorized dealers.
Of course, this Warranty does not apply to products which have been
abused, misused, modied, or repaired by someone other than CP or its
Authorized Service Representatives. If a CP Product proves defective in
material or workmanship within one year after purchase, return it to any
CP Factory Service Center or Authorized Service Center for CP tools,
transportation prepaid, enclosing your name and address, adequate
proof of date of purchase, and a short description of the defect. CP will,
at its option, repair or replace defective Products free of charge. Repairs
or replacements are warranted as described above for the remainder of
the original warranty period. CP’s sole liability and your exclusive remedy
under this Warranty is limited to repair or replacement of the defective
Product. (There Are No Other Warranties Expressed Or Implied And
CP Shall Not Be Liable For Incidental, Consequential, Or Special
Damages, Or Any Other Damages, Costs Or Expenses Excepting
Only The Cost Or Expense Of Repair Or Replacement As Described
Above.)
English
EN
Technical Data
0.401 in. (10mm) shank
Air Pressure 90 psi (6.3 bar)
Bore and Stroke: 3/4 x 2.25 in (19 x 58mm)
BPM: 3500
Noise & Vibration Declaration*
Sound pressure level 103 dB(A), uncertainty 3 dB(A), in
accordance with EN ISO 15744. For sound power, add 11
dB(A).
Vibration value;
a= 5,5 m/s
2
, uncertainty k= 1,9 m/s
2
, re. ISO 28927-9
Declaration of noise and vibration emission
All values are current as of the date of this publication. For the
latest information please visit cp.com.
These declared values were obtained by laboratory type
testing in accordance with the stated standards and are
suitable for comparison with the declared values of other
tools tested in accordance with the same standards. These
declared values are not adequate for use in risk assessments
and values measured in individual work places may be higher.
The actual exposure values and risk of harm experienced by
an individual user are unique and depend upon the way the
user works, the workpiece and the workstation design, as well
upon the exposure time and the physical condition of the user.
We, Chicago Pneumatic, cannot be held liable for the
consequences of using the declared values, instead of
values reecting the actual exposure, in an individual risk
assessment in a work place situation over which we have no
control.
This tool may cause hand-arm vibration syndrome if its
use is not adequately managed. An EU guide to managing
hand-arm vibration can be found at www.pneurop.eu/uploads/
documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf
We recommend a programme of health surveillance to
detect early symptoms which may relate to noise or vibration
exposure, so that management procedures can be modied to
help prevent future impairment.
INSTRUCTION MANUAL
Machine Type:
Power tool with .401 in. shank for use with chisel and various
.401 in. accessories. - No other use is permitted
Air Supply Requirements
1. Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher
pressure drastically reduces tool life.

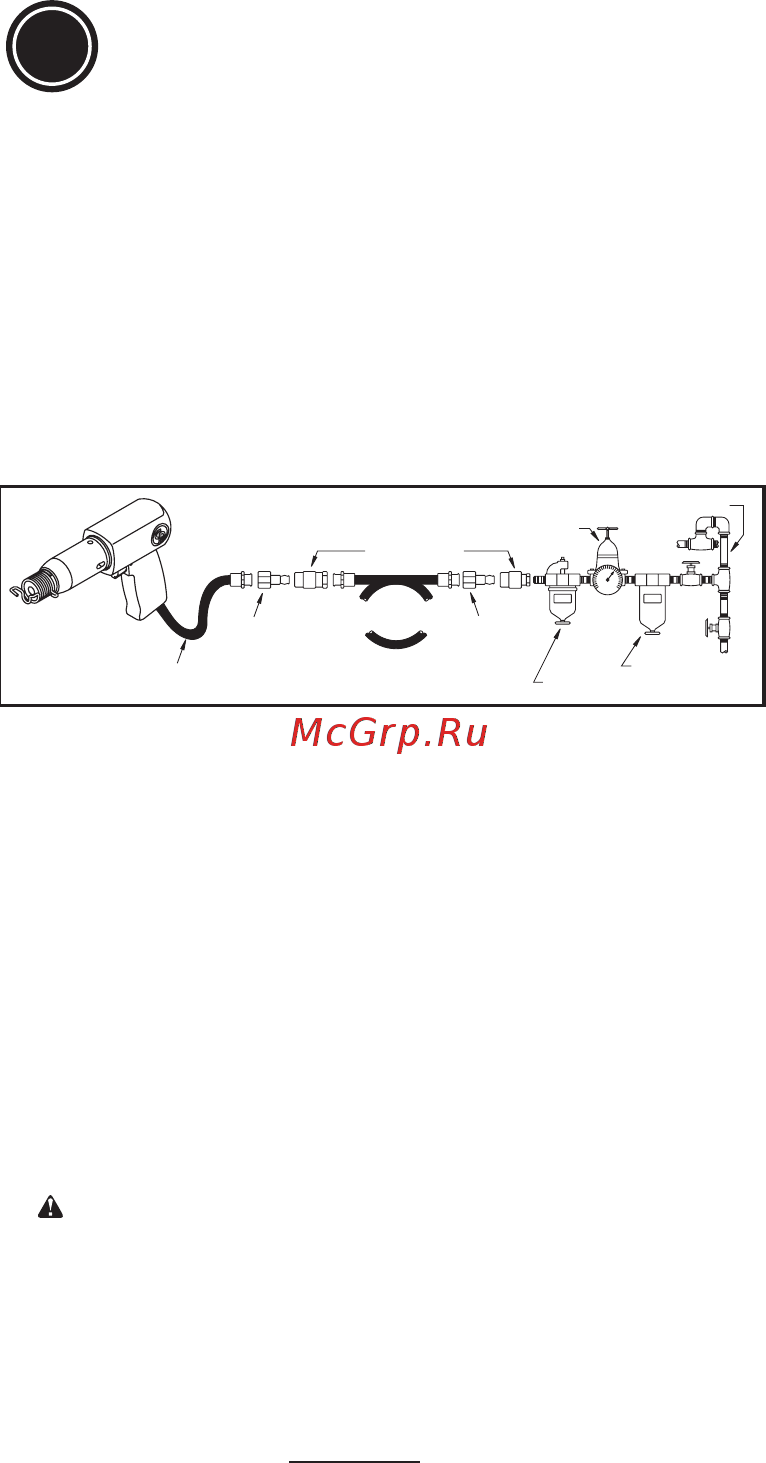

2. Connect tool to air line using pipe, hose and tting sizes
shown in the diagram below.
Lubrication
1. Use an air line lubricator with SAE #10 oil, adjusted to
two (2) drops per minute. If an air line lubricator cannot be
used, add air motor oil to the inlet once a day.
2. The use of synthetic oils for air line lubrication is not
recommended because of possible damage to seals,
o-rings, hose, rotor blades and polycarbonate oiler/lter
bowls.
Operation
1. To insert chisel, press loop on retainer aside, push chisel
into cylinder and release loop.
2. Place cutting edge of chisel against workpiece, depress
trigger.
Caution: Do not operate tool without chisel in
cylinder, or allow the chisel to be driven out of cylinder.
Internal damage will result if piston is allowed to strike
cylinder wall.
Maintenance
1. Disassemble and inspect tool every three months if the tool
is used every day. Replace damaged or worn parts.
2. High wear parts are underlined in the parts list.
3. Dirt or gum deposits cut tool power. To correct this, ush
out the tool with gum solvent oil. If outside conditions are
in order, disassemble tool, replace worn or damaged parts,
clean, reassemble and relubricate.
1/2" (12 mm)
3/8" (10mm)
3/8" (10mm)
3/8" (10mm)
CA048361 (1/2")
CA048362 (1/2")
CA048360 (1/2")
3/8" (10mm)
3/8" (10mm)
