Service Navigation

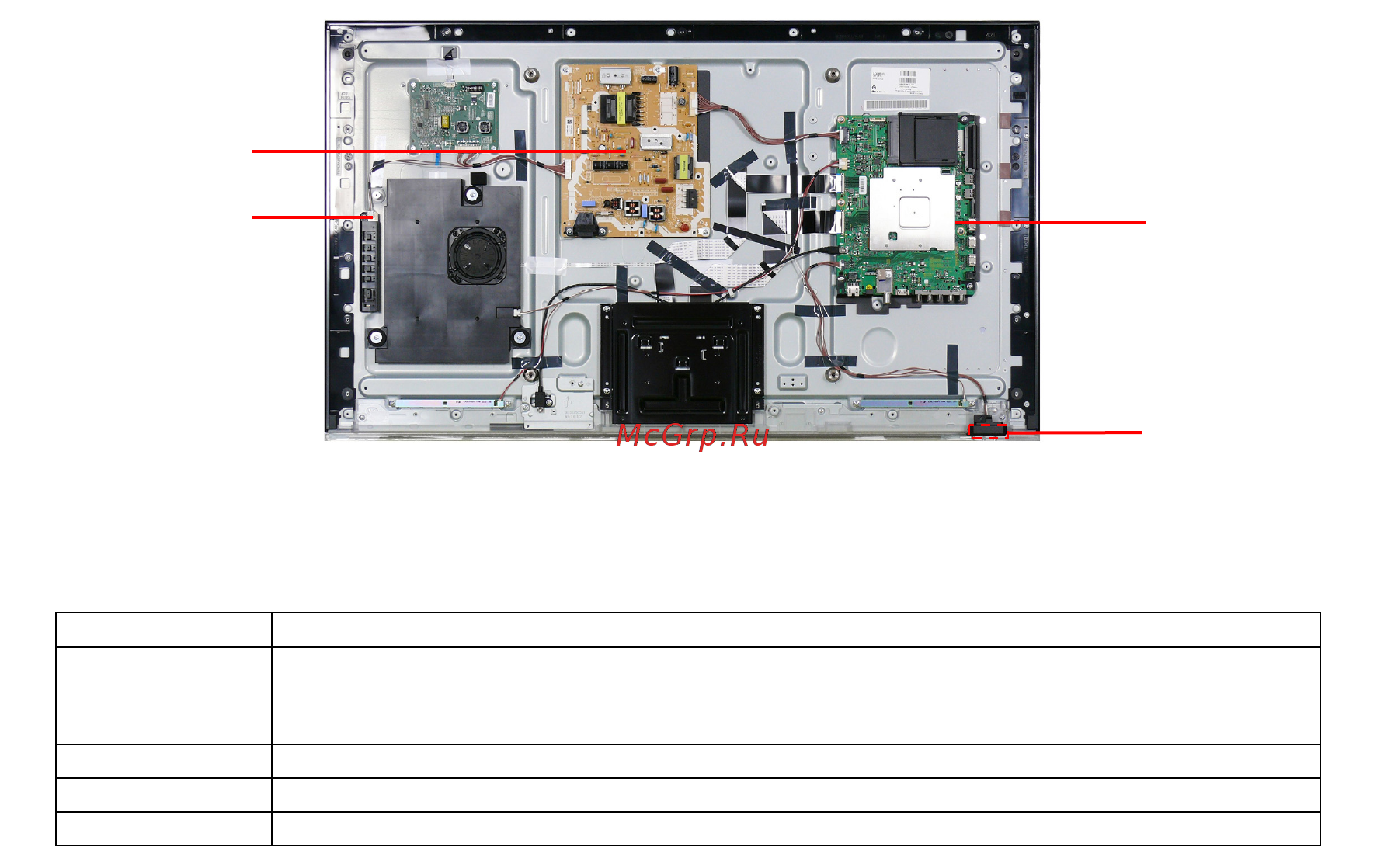

Chassis Board Layout
P-BOARD
K-BOARD
A-BOARD
GK-BOARD
Board Name Function
A-Board AV Terminal, HDMI, USB, Digital Audio Out, Tuner DVB-T/T2/C, CI slot,
SD slot, Ethernet, Headphones, Wireless LAN, Peaks IC, Speaker out, Woofer,
Flash Memory, DDR SDRAM
P-Board Main Input, Power Supply
K-Board Remote Receiver, Power and Timer LED, C.A.T.S
GK-Board Key control, Power switch
6
